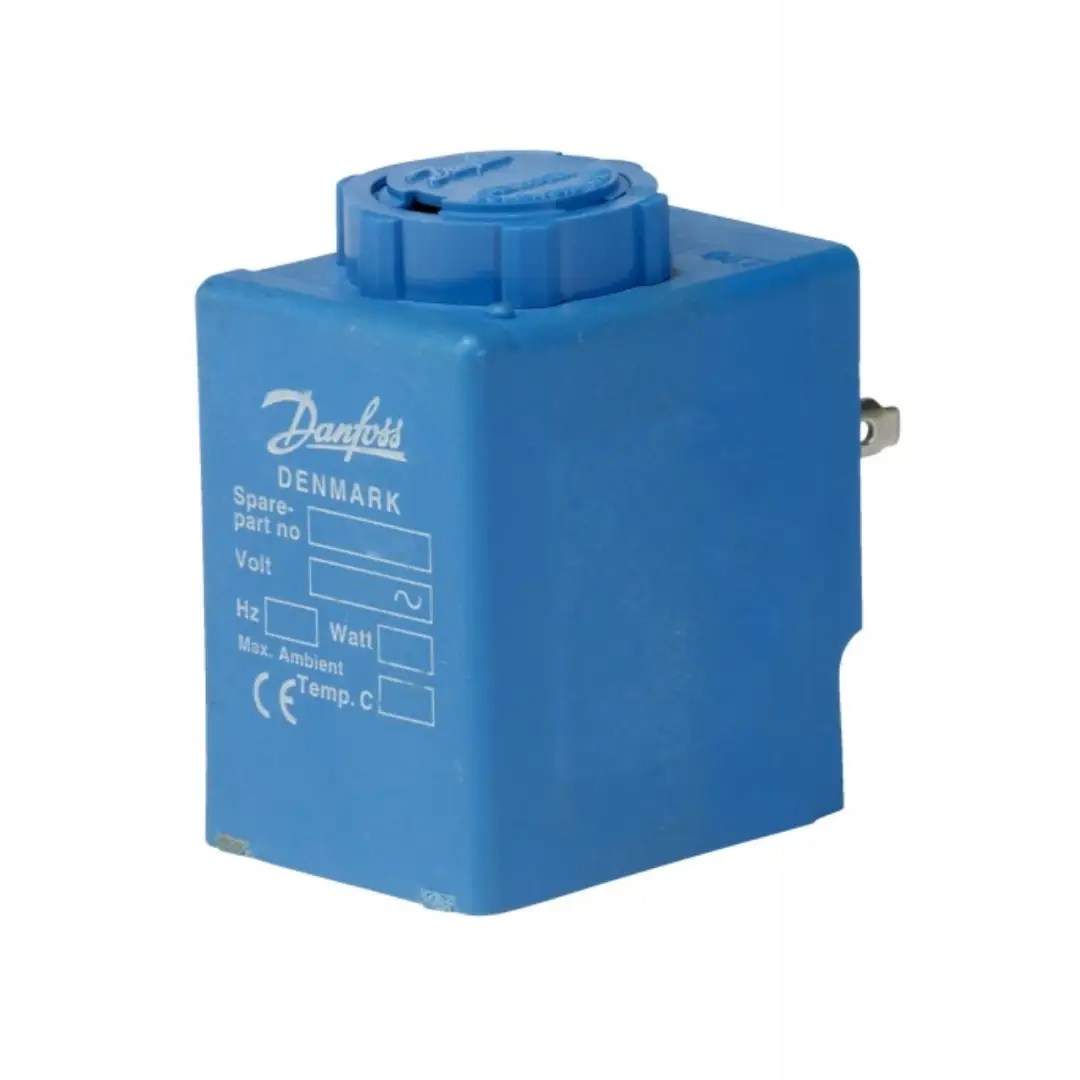

Danfoss Solenoid Coil, BC230C Type, DIN Spade, 220–230 V AC, 50/60 Hz, 042N7518

Part Number : 042N7518

Brand :
Danfoss

Compact AC solenoid coil for Danfoss valves with DIN spade (3-spade) connector, operating at 220–230 V AC (50/60 Hz). Low apparent/real power, 13.5 mm actuator fit, and IP00 enclosure for use inside protected control panels. Ideal for HVAC and general fluid-control service.

View all

KWD 25.500

Quantity
Description
Specifications
Downloads
Related products

Description

The Danfoss 042N7518 (BC230C) is an AC solenoid coil designed for dependable actuation of Danfoss solenoid valves. It features a DIN spade electrical interface (3 spades, 6.3 × 0.8 mm) to EN175301-803, supports 220–230 V AC on 50/60 Hz mains, and offers efficient performance with 25 VA/12 W (50 Hz) and 19 VA/9.5 W (60 Hz). The coil fits 13.5 mm actuators and carries an IP00 enclosure class, making it suitable for mounting within protected control panels across −40 °C to +40 °C ambient conditions.

Key Features

• 220–230 V AC coil for Danfoss solenoid valves; 50/60 Hz compatible

• DIN spade electrical connection for quick, secure wiring (EN175301-803)

• Apparent power: 25 VA @ 50 Hz / 19 VA @ 60 Hz; real power: 12 W @ 50 Hz / 9.5 W @ 60 Hz

• Wide ambient operating range: ?40 °C to +40 °C

• IP00 enclosure class for use inside protected control panels

• Compatible with 13.5 mm actuator size • Suitable for non-condensing environments (0–97% RH)

Applications

• HVAC and heating systems using Danfoss solenoid valves (220–230 V AC)

• General fluid-control manifolds and valve stations on 50/60 Hz mains

• Installations within protected electrical enclosures or control panels (IP00)

• Plant rooms and cold-room sites within -40…+40 °C ambient range

Downloads

Danfoss Datasheet 042N7518.pdf

pdf
Download

Specifications

Electrical connection
DIN Spade, 3 × spades, 6.3 mm × 0.8 mm, EN175301-803
Supply Voltage
220–230 V AC (50/60 Hz)
Frequency
50/60 Hz
Apparent power
25 VA @ 50 Hz; 19 VA @ 60 Hz
Real power
12 W @ 50 Hz; 9.5 W @ 60 Hz
Actuator size
13.5 mm
Enclosure Rating
IP00
Ambient temperature range
−40 °C to +40 °C (−40 °F to +104 °F)
Relative Humidity
0–97 % RH, non-condensing
Compliance
EU RoHS – Out of scope; China RoHS – Out of scope; WEEE – In scope
