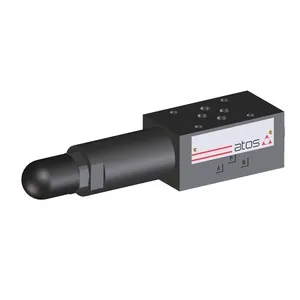

Atos HG/KG/JPG Type Modular Valves, Sizes 06–25, Max Pressure 350 bar, Temperature Range -40°C to +80°C

Brand :
Atos

Pressure reducing, direct or piloted, spool-type modular valves, 2-way or 3-way.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos HG, KG, and JPG modular valves are designed for precise pressure reduction in hydraulic systems. HG valves are direct-operated 3-way valves, KG valves are piloted 3-way valves, and JPG valves are piloted 2-way valves. Available in ISO 4401 sizes 06, 10, 16, and 25, these valves provide efficient and reliable pressure regulation in industrial applications.

Key Features

- Pressure reducing, spool-type, direct or piloted valves. - 2-way (JPG) and 3-way (HG, KG) configurations. - Sizes 06, 10, 16, 25 as per ISO 4401 standards. - Max flow: 50–300 l/min; Max pressure: 350 bar (HG), 315 bar (KG, JPG).

Applications

- Suitable for industrial hydraulic systems requiring precise pressure reduction.

Downloads

D140_datasheet_1.pdf

pdf
Download

Specifications

Valve Type and Models
HG-031, KG-031, JPG-211, JPG-311
Maximum flow
HG: 50 l/min; KG: 100 l/min; JPG-2: 250 l/min; JPG-3: 300 l/min
Maximum Pressure
HG: 350 bar; KG and JPG: 315 bar
Pressure Adjustment Ranges
HG: 3–32 bar, 2–50 bar, 10–75 bar, 20–100 bar, 50–210 bar; KG: 7–100 bar, 8–210 bar; JPG: 6–100 bar, 70–210 bar
Seal Options
NBR (standard), FKM (/PE option), HNBR (/BT option)
Operating Temperature
Standard seals: -30°C to +80°C; FKM (/PE): -20°C to +70°C; HNBR (/BT): -40°C to +70°C
Mounting surface
ISO 4401, Sizes 06, 10, 16, 25
Fluid compatibility
Mineral oils (DIN 51524), Flame-resistant fluids (HFDU, HFDR, HFC)
Compliance
RoHS Directive 2011/65/EU, REACH Regulation (EC) No. 1907/2006
