Atos HF Type Modular Valves, Size 06, Max Pressure 350 bar, Temperature Range -30°C to +70°C

Brand :
Atos

Directional shut-off or by-pass, spool-type modular valves with AC/DC solenoids, cURus marked.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

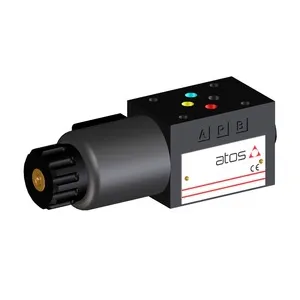

Atos HF modular valves are spool-type, direct-operated solenoid valves used for shut-off or by-passing hydraulic lines. These modular valves support compact stack mounting with other modular valves in size 06. They are equipped with DIN, AMP, Deutsch, or wire connectors, ensuring reliable operation in industrial hydraulic systems.

Key Features

- Modular, spool-type, direct-operated solenoid valves. - Size 06 mounting as per ISO 4401. - Max flow: 60 l/min, max pressure: 350 bar.

Applications

- Suitable for industrial hydraulic systems requiring compact, modular valve setups.

Downloads

D050_datasheet_1.pdf

pdf
Download

Specifications

Valve Type and Models
HF-0611, HF-0613, HF-0614, HF-0673
Maximum flow
60 l/min
Maximum Pressure
350 bar
Operating pressure
Ports P, A, B: 350 bar; Port T: 210 bar (DC solenoid), 160 bar (AC solenoid)
Seal Options
NBR (standard), FKM (/PE option), HNBR (/BT option)
Mounting surface
ISO 4401, Size 06
Operating Temperature
Standard seals: -30°C to +70°C; FKM seals (/PE): -20°C to +70°C; HNBR seals (/BT): -40°C to +70°C
Connector Types
DIN, AMP Junior Timer, Deutsch, or Lead Wire
Electrical Supply
AC or DC solenoids with voltages from 12V to 230V
Compliance
CE, cURus, RoHS, REACH
