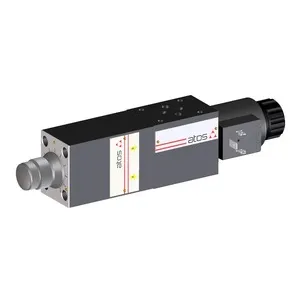

Atos DHQ Type Modular Valves, Size 06, Max Pressure 250 bar, Temperature Range -40°C to +70°C

Brand :
Atos

2-way pressure compensated flow control with by-pass solenoid valve, direct, AC or DC solenoids, cURus marked.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos DHQ modular valves provide 2-way pressure compensated flow control with a by-pass solenoid valve for fast/slow speed switching. They feature a direct or solenoid-controlled execution, allowing precise regulation of flow rate. These valves are suitable for industrial hydraulic systems requiring ISO 4401 size 06 mounting and high efficiency in actuator speed control. Options include locking keys for setting knobs and various electrical connectors.

Key Features

- 2-way pressure compensated modular valves for fast/slow speed regulation. - Integrated solenoid valve for fast/slow switching. - Graduated micrometer knob for precise flow adjustment. - ISO 4401 size 06 mounting, with a built-in check valve for free reverse flow.

Applications

- Ideal for hydraulic systems requiring pressure compensated flow control with bypass functionality.

Downloads

D170_datasheet_1.pdf

pdf
Download

Specifications

Valve Type and Models
DHQ-011/*, DHQ-013/*, DHQ-016/*, DHQ-023/*, DHQ-024/*
Maximum flow
Regulated flow: 1.5–24 l/min; Free flow: 40 l/min
Maximum Pressure
250 bar
Pressure Adjustment Ranges
Δp adjustment: 3–8 bar depending on the model
Seal Options
NBR (standard), FKM (/PE option), HNBR (/BT option)
Operating Temperature
Standard seals: -30°C to +70°C; FKM (/PE): -20°C to +70°C; HNBR (/BT): -40°C to +70°C
Mounting surface
ISO 4401-03-02-0-05
Fluid compatibility
Mineral oils (DIN 51524), HFC fluids with appropriate seal selection
Compliance
CE to Low Voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU, REACH Regulation (EC) No. 1907/2006
