Wika Top-mounted level indicator For level measurement in liquid media, UTN, -60 ... +300 °C, Vacuum to 40 bar
Part Number : UTN
Brand :
![WIKA]()

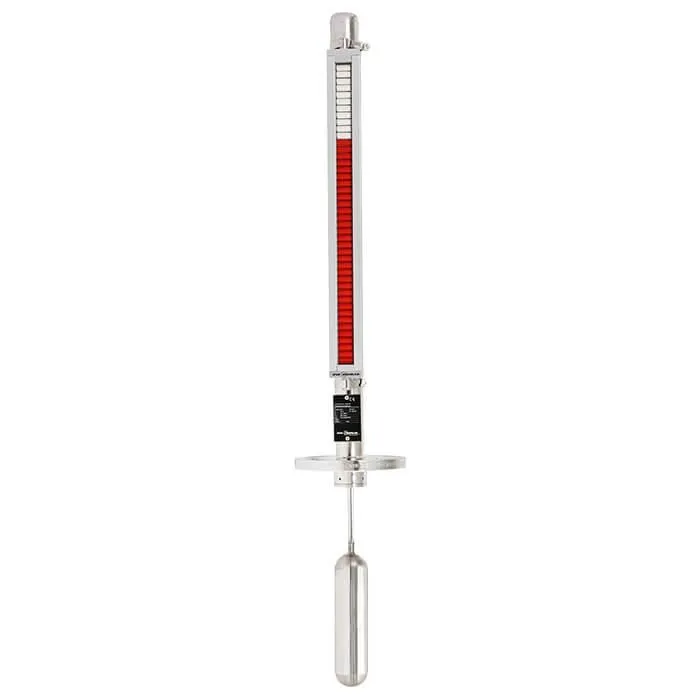

The model UTN top-mounted level indicator consists of a measuring chamber, a float with guide rod and a magnetic system. Mounting onto the vessel is made via appropriate process connections (flange, thread).
View all
Description
The model UTN top-mounted level indicator consists of a measuring chamber, a float with guide rod and a magnetic system. Mounting onto the vessel is made via appropriate process connections (flange, thread). The permanent magnetic system, which is connected to the float via a guide rod, transmits the liquid level measured in the vessel by the float, contact-free, to the magnetic display mounted to the outside of the measuring chamber. In this magnetic display there are red/white plastic rollers or stainless steel flaps with bar magnets fitted at 10 mm intervals. The magnetic rollers or flaps are turned 180° through the walls of the measuring chamber. For an increasing level from white to red; for a falling level from red to white. Thus the magnetic display indicates the level of a vessel as a red column, without power supply.
Applications
Chemical, petrochemical, natural gas, offshore industries Shipbuilding, machine building Power generating equipment, power plants Pharmaceutical, food and beverage industries, process water and drinking water treatmentSpecial features
Process- and procedure-specific production Operating limits: Operating temperature: T = -60 ... +300 °C Operating pressure: P = Vacuum to 40 bar Wide variety of different process connections Mounting of level sensors and magnetic switches possible as an option Explosion-protected versionsRelated Products
![]()
