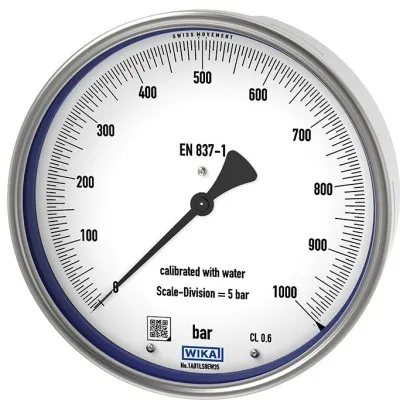

Wika Test Gauge, stainless steel, 332.50, 333.50, Standard version, class 0.6, NS 160 [6"]

Part Number : 332.50, 333.50

Brand :
WIKA

The model 33x.50 high-quality test gauge has been specifically designed for increased safety requirements during high-accuracy pressure measurements and is suited for calibration tasks.

View all
Quantity
Description
Downloads
Related products

Description

The model 33x.50 high-quality test gauge has been specifically designed for increased safety requirements during high-accuracy pressure measurements and is suited for calibration tasks. With an accuracy class of 0.6, the Bourdon tube pressure gauge is suitable for testing industrial type pressure gauges or for precision measurement in laboratories. For pressures ?400 bar [6.000 psi] the instrument is also available with an accuracy class of 0.25. The wear-resistant precision movement, the wetted parts and the case are made from high-grade stainless steel. WIKA manufactures and qualifies the pressure gauge in accordance with the standards EN 837-1 and ASME B40.100. This version has a blow-out device with blow-out plug on the back of the case. In the event of a failure, overpressure can escape there and the operator is protected at the front side. For harsh operating conditions (e.g. vibrations), all instruments are also available with a liquid filling. The optimal readability of the instrument, with a nominal size of 160 mm [6\"], is achieved via a knife edge pointer and a dial with fine divisions. In addition, a mirror band scale can be chosen to avoid the parallax error. On request, a calibration certificate will be provided for this instrument. Safe storage and transport is ensured by a transport case (accessory). The QR code on the dial allows instrument-specific information such as the serial number, the order number, certificates and other product data to be retrieved from the internet easily and in the long term.

Applications

• For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments • Precision measurement in laboratories • High-accuracy pressure measurement • Testing of industrial type pressure gauges • With liquid-filled case (model 333.50) for applications with high dynamic pressure loads or vibrations

Special features

• Designed in compliance with the requirements of EN 837-1 and ASME B40.100 • Completely from stainless steel • Knife edge pointer for optimal accuracy of reading • Wear-resistant precision movement from stainless steel • QR code on dial links to instrument-specific information

Downloads

332.50, 333.50 Data sheet.pdf

pdf
Download

332.50, 333.50 Operating Instructions.pdf

pdf
Download
