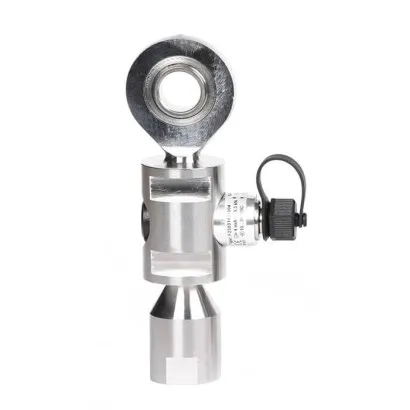

Wika Tension/Compression Force Transducer, F2303, With Thin Film Technology And Swivel Head Up To 45 Kn

Part Number : F2303

Brand :
WIKA

The tension/compression force transducer is designed for static and dynamic measurement tasks in the direct flux of force. It determine the tension and compression forces in a wide scope of applications.

View all
Quantity
Description
Downloads
Related products

Description

The tension/compression force transducer is designed for static and dynamic measurement tasks in the direct flux of force. It determine the tension and compression forces in a wide scope of applications. Force transducers of this model are used for measuring axial forces on electric spindle presses, for monitoring overload protection in lifting cylinders and for measuring force on punches, presses and welding guns. Appropriate technical and regional approvals are available as an option. The force transducer is made of high-strength, corrosion resistant stainless steel 1.4542, which is particularly suitable for their application areas. As output signals, the common active current and voltage outputs are available (4 ... 20 mA, 0 ... 10 V). Also redundant output signals and CANopen® protocols are possible.

Applications

• Machine building and plant construction • Manufacturing automation • Presses, lifting cylinders, welding guns, drives • Chemistry and petrochemistry

Special features

• Measuring ranges 0 ... 10 kN to 0 ... 45 kN [0 ... 2,248 lbf to 0 ... 10,116 lbf] • Corrosion-resistant stainless steel design • Integrated amplifier • High long-term stability, high shock and vibration resistance • Good reproducibility, simple installation

Downloads

F2303 Data sheets.pdf

pdf
Download

F2303 Operating instructions.pdf

pdf
Download
