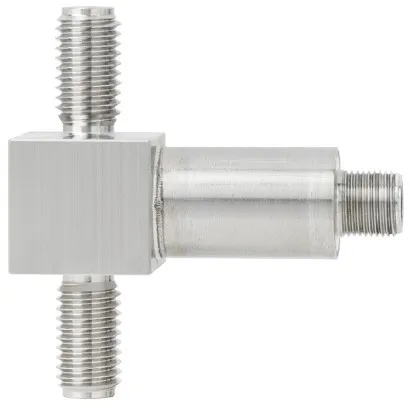

Wika Tension/Compression Force Transducer, F2301, F23c1, F23s1, With Thin-Film Technology Up To 500 Kn

Part Number : F2301, F23C1, F23S1

Brand :
WIKA

The tension/compression force transducers are suitable for static and dynamic measuring requirements in the direct force flow. They serve for determining tension and / or compression forces in diverse application areas.

View all
Quantity
Description
Downloads
Related products

Description

The tension/compression force transducers are suitable for static and dynamic measuring requirements in the direct force flow. They serve for determining tension and / or compression forces in diverse application areas. These force transducers are very often used in linear drives as well as in the areas of special machine construction and laboratory technology. The force transducers are also perfectly suited for hoists and crane systems. The corresponding technical and regional approvals of these force transducers are, of course, available as options. The force transducers are made of high-strength, corrosion resistant stainless steel 1.4542, whose properties are particularly suitable for the transducer's application area. As output signals, the common active current and voltage outputs are available (4 … 20 mA, 0 … 10 V). Also redundant output signals and CANopen® protocols are possible. The tension/compression force transducers can be integrated into a certified WIKA overload protection with model ELMS1 (DIN EN ISO 13849-1 with PL d/Cat. 3).

Applications

• Industrial weighing technology • Machine building and plant construction, manufacturing automation • Chemical and petrochemical industries • Crane systems and hoists

Special features

• Measuring ranges 0 ... 1 kN to 0 ... 500 kN [0 ... 224.8 lbf to 0 ... 112,404 lbf] • Corrosion-resistant stainless steel design • Integrated amplifier • High long-term stability, high shock and vibration resistance • Good reproducibility, easy installation

Downloads

F2301, F23C1, F23S1 Data sheets.pdf

pdf
Download

F2301, F23C1, F23S1 Operating instructions.pdf

pdf
Download
