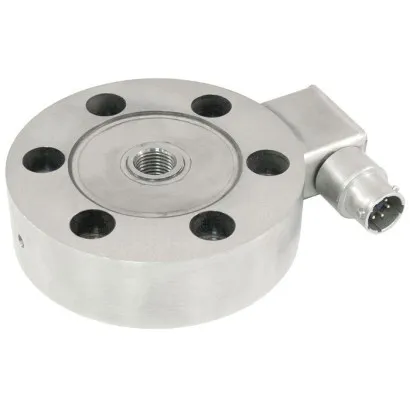

Wika Tension/Compression Force Transducer, F2229, Up To 890 Kn

Part Number : F2229

Brand :
WIKA

Tension/compression transducers are used to determine tension and compression forces in a wide range of applications and are suitable for static and dynamic measurement tasks.

View all
Quantity
Description
Downloads
Related products

Description

Tension/compression transducers are used to determine tension and compression forces in a wide range of applications and are suitable for static and dynamic measurement tasks. Due to their robustness, high accuracy and low installation height, force transducers are used in harsh industrial environments as well as in the laboratory or test field. They have a bore through the center, with an internal thread for the force introduction. Note In order to avoid overloading, it is necessary to connect the force transducer electrically during installation and to monitor the measured value. The force to be measured must be applied concentrically and free of transverse force. Options • Load input elements • Built-in amplifier • Extended compensated temperature range • Different thread sizes • Different bridge resistance • Connector guard

Applications

• Apparatus construction • Production lines • Measuring and inspection equipment • Special equipment and machinery construction

Special features

• Measuring ranges 0 ... 0.22 kN up to 0 ... 890 kN [0 ... 50 lbs up to 0 ... 200,000 lbs] • Robust design • Material stainless steel • Protection class IP66 • Relative linearity error 0.1 % Fnom

Downloads

F2229 Data sheets.pdf

pdf
Download
