Wika Submersible pressure sensor For general applications, LS-1000

Part Number : LS-1000

Brand :
WIKA

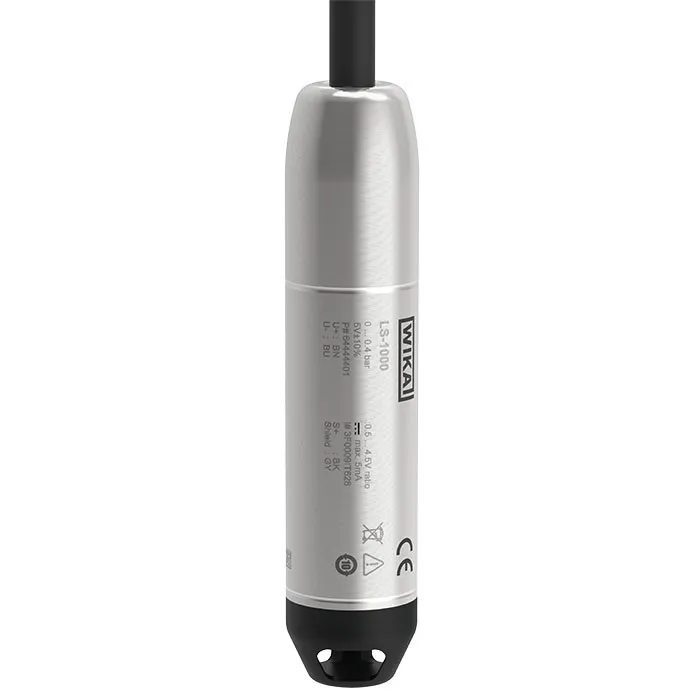

The model LS-1000 submersible pressure sensor continuously measures the level of liquid media in industrial environments. It records the level hydrostatically from 1 to 10 m.

View all
Quantity
Description
Downloads
Related products

Description

The model LS-1000 submersible pressure sensor continuously measures the level of liquid media in industrial environments. It records the level hydrostatically from 1 to 10 m. Optimum long-term stability ensures precise measured data and minimal signal drift. Hermetic leak tightness is ensured by the robust design and a specially developed cable with integrated strain relief. Due to its attractive pricing, the LS-1000 submersible pressure sensor is the ideal choice for OEM customers. Permanently leak-tight thanks to sophisticated design The fully welded probe, made of stainless steel, works reliably thanks to IP68 ingress protection. A special cable design with integrated fibre mesh ensures effective strain relief. The potting of the cable inlet provides additional safety. In addition, a helium leak test is carried out for each individual instrument in our final inspection so that even the smallest leaks and hair-line cracks can be detected. Low total cost of ownership The submersible pressure sensor is maintenance-free and especially stable over the long term with an accuracy of 0.5 percent. This minimises failures, downtimes and the total cost of ownership.

Applications

Sewage lifting stations AdBlue tanks Pumping stations

Special features

Hydrostatic levels 1 ... 10 m [3.28 ... 32.81 ft] Permanently leak-tight thanks to special materials and sophisticated design Low total cost of ownership due to the highest reliability and durability

Downloads

LS-1000 Data sheet LM 40.05.pdf

pdf
Download

LS-1000 Operating Instruction.pdf

pdf
Download
