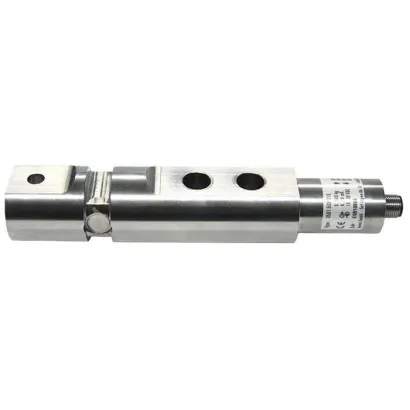

Wika Shear Beam, F3301, F33c1, F33s1, With Thin-Film Technology Up To 100 Kn

Part Number : F3301, F33C1, F33S1

Brand :
WIKA

Shear beams of models F33x1 are suitable for static and dynamic measuring requirements. They serve for determining shear forces in diverse fields of application.

View all
Quantity
Description
Downloads
Related products

Description

Shear beams of models F33x1 are suitable for static and dynamic measuring requirements. They serve for determining shear forces in diverse fields of application. The shear beams are very often used in industrial weighing technology as well as in the areas of special machinery construction and production automation. They are also used in laboratory technology and the processindustry to determine torque. The corresponding technical and regional approvals of these force transducers are, of course, available as options. The shear beams are made of high-strength, corrosion-resistant 1.4542 stainless steel, the properties of which are particularly well-suited to the areas of application of the shear beams. As output signals, the common active current and voltage outputs are available (4 ... 20 mA, 0 ... 10 V). Redundant output signals and CANopen® protocols are possible. The shear beams can be integrated into a certified WIKA overload protection with model ELMS1 (DIN EN ISO 13849-1 with PL d/Cat. 3).

Applications

• Industrial weighing technology • Machine building and plant construction, manufacturing automation • Chemical and petrochemical industries • Wheighing in safety applications

Special features

• Measuring ranges 0 ... 2 kN to 0 ... 100 kN [0 ... 449.6 lbf to 0 ... 22,481 lbf] • Corrosion-resistant stainless steel version • Integrated amplifier • High long-term stability, high shock and vibration resistance • Good reproducibility, easy installation

Downloads

F3301, F33C1, F33S1 Data sheets.pdf

pdf
Download

F3301, F33C1, F33S1 Operating instructions.pdf

pdf
Download
