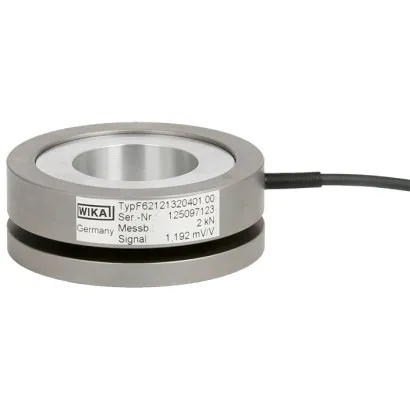

Wika Ring Force Transducer, F6212, Flat Version Up To 100 Kn

Part Number : F6212

Brand :
WIKA

Ring force transducers are designed for static measurement tasks in the direct flux of force. They determine the tension and compression forces in a wide scope of applications.

View all
Quantity
Description
Downloads
Related products

Description

Ring force transducers are designed for static measurement tasks in the direct flux of force. They determine the tension and compression forces in a wide scope of applications. These force transducers are used in applications and test facilities with the need of a ring geometry with a big inner diameter. Typical tasks are force measurement in spindle drives or presses. Note In order to avoid overloading, it is advantageous to connect the force transducer electrically during installation and to monitor the measured value. The force to be measured must be applied axially rightangled of the force transducer and free of transverse force. Optionally, this ring force transducer is available on the upper and lower side with fastening threads. When mounting the force transducer, a flat, ground and hard surface should be ensured. Options Control function 100% signal Rated output adjustment on 1 mV/V Extended nominal temperature range

Applications

• Cutting tools • Measurement and inspection equipment • Test benches and production lines • Press-in forces and joining forces monitoring • Force measurement on spindle drives and press spindles

Special features

• Measuring ranges 0 ... 2 kN up to 0 ... 100 kN • For compression force measurements • Flat dimensions • Stainless steel measuring body • Protection class IP65

Downloads

F6212 Data sheets.pdf

pdf
Download
