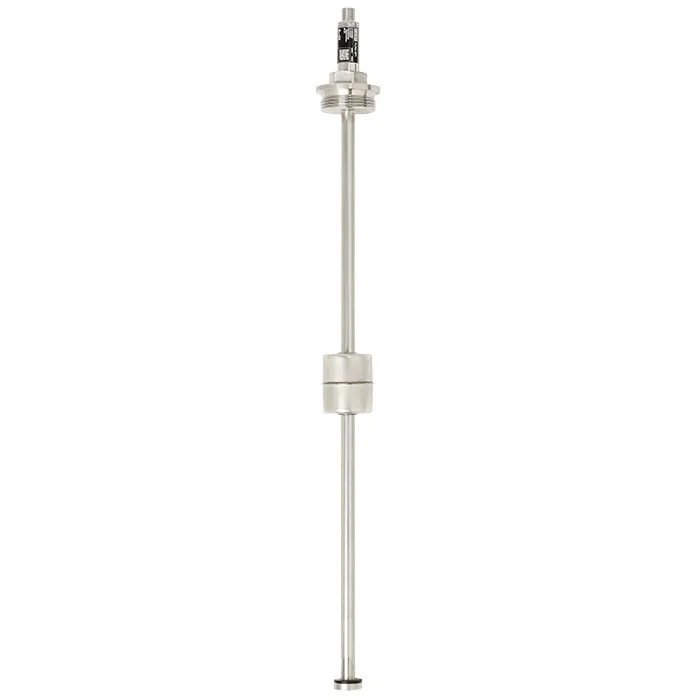

Wika Reed level transmitter for connection to WIKA radio unit, FLRU-SFI, -80 ... +200 °C , vacuum to 80 bar, ρ ≥ 400 kg/m3
Part Number : FLRU-SFI
Brand :
![WIKA]()
The model FLRU level transmitter with reed-chain technology in combination with the WIKA model NETRIS®3 radio unit is used wherever web-based remote monitoring of level measurement in liquid media is desired.
View all
Description
The model FLRU level transmitter with reed-chain technology in combination with the WIKA model NETRIS®3 radio unit is used wherever web-based remote monitoring of level measurement in liquid media is desired. Condition-based and preventive maintenance through centralised big data analysis is thus possible. Level transmitters of this model series work on the floatprinciple with magnetic transmission and are used wherever centralised, web-based remote monitoring is required.The float's magnetic system in the guide tube actuates aresistance measuring chain that corresponds to a 3-wire potentiometer circuit. The measurement voltage generated by this is proportional to the fill level.The measurement voltage is very finely stepped due to the contact separation of the measuring chain and is thus virtually continuous. Depending on the requirements, several different contact separations are available. The FLRU reed level transmitter is part of the WIKA IIoT solution. With this, WIKA offers a holistic solution for your digitalisation strategy.
Applications
Condition-based and preventive maintenance throughcentralised big data analysis Chemical industry, petrochemical industry, natural gas, offshore, shipbuilding, machine building, power generating equipment, power plants, process water and drinkingwater treatment Level detection for almost all liquid mediaSpecial features
IIoT-capable measuring instrument in combination with WIKA radio unit, model NETRIS®3 Process- and procedure-specific solutions possible Operating limits: Process temperature:T = -80 ... +200 °C [-112 ... +842 °F] Operating pressure: P = vacuum to 80 bar [1,160 psi] Limit density: ? ? 400 kg/m3 Wide variety of different process connections and materials Intrinsically safe version Ex iRelated Products
![]()
