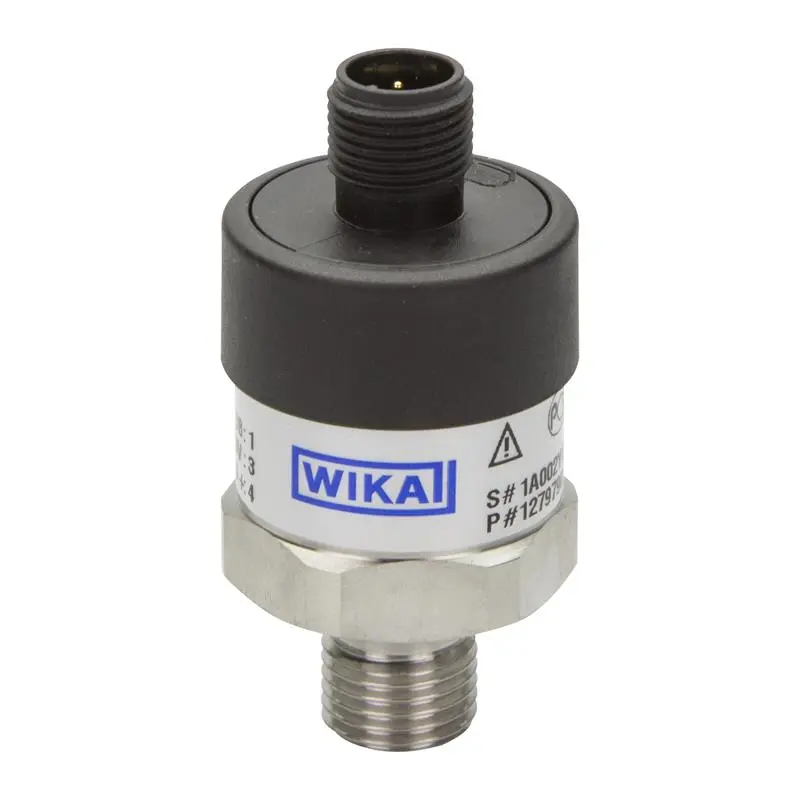

Wika Pressure Transmitter, A-10, 0…0.6 bar gauge, circular connector M12x1, 4-pin, 4 ... 20 mA, 2-wire, 8...30 V DC


Part Number : 14126782/A-10

Brand : WIKA

The WIKA A-10 0...0.6 bar gauge Pressure Transmitter is designed for general industrial applications, offering circular connectors M12x1, 4-pin. It supports output signals 4...20 mA (2-wire), with power supply ranges from 8...30 V DC. Its robust design features a 316L stainless steel casing and G 1/4 A DIN EN ISO 1179-2 process connection, suitable for a range of pressure measurements

Other measuring ranges on request: inWC, mbar, kg/cm², MPa, kPa

View all

$ 734.5

Quantity In Stock
Description
Specifications
Downloads
Related products

Description

The WIKA A-10 Pressure Transmitter is designed for general industrial applications, offering reliable performance with a non-linearity of 0.5% BFSL. It features robust 316L stainless steel wetted parts, making it suitable for a wide range of pressure measurements and harsh environments.

Key Features:

Durability: Constructed with 316L stainless steel for corrosion resistance. Precision: Offers high accuracy with a non-linearity of 0.5% BFSL. Application Suitability: Ideal for monitoring pressure in fluids and gases across various industrial processes.

Pros:

Easy integration into control systems with standard output signals. Compact design for space-constrained installations. Supports wide power supply range for flexibility in different setups.

Cons:

Not suitable for applications requiring media temperatures below 0°C. NBR sealing may not be ideal for aggressive chemicals.

Downloads

Wika A-10.pdf

pdf
Download

Specifications

Measuring range
0...0.6 bar gauge
Process Connection
G 1/4 A DIN EN ISO 1179-2
Electric connection
Circular connector M12x1, 4-pin
Vacuum tightness
yes
Output Signal
4 ... 20 mA, 2-wire
Power Supply
8...30 V DC
Non-linearity
0.5% BFSL
Accuracy at room temperature
≤ ±2.4 % of span
Permissible ambient temperature
0 ... 80 °C
Shock resistance
500 g (IEC 60068-2-27, mechanical)
Wetted parts
Stainless steel 316L
Sealing
NBR
