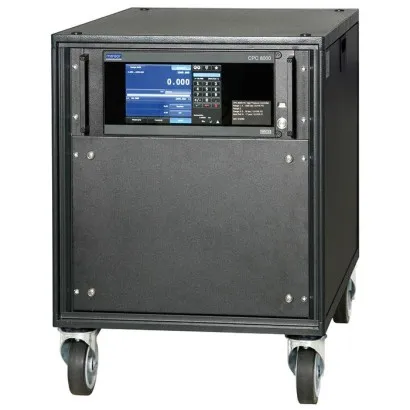

Wika Pressure Controller, CPC8000-H, Hydraulic High-Pressure Version

Part Number : CPC8000-H

Brand :
WIKA

The model CPC8000-H Hydraulic Pressure Controller is especially suited as a factory/working standard for the automatic testing or calibration of all types of high-pressure measuring instruments, due to its high accuracy and control stability. Autofrettage applications and cyclic pressure-load tests are ideal application areas due to its robust design and reliability.

View all
Quantity
Description
Downloads
Related products

Description

Application The model CPC8000-H Hydraulic Pressure Controller is especially suited as a factory/working standard for the automatic testing or calibration of all types of high-pressure measuring instruments, due to its high accuracy and control stability. Autofrettage applications and cyclic pressure-load tests are ideal application areas due to its robust design and reliability. Clean dry compressed air is required to supply the input of the pneumatic control circuit. Hydraulic oil, water, or other media on request, is used as a pressure medium on the output. Design The CPC8000-H Hydraulic Pressure Controller consists of two components, the model CPC8000-HC pneumatic pressure controller and the model CPC8000-HM hydraulic module with the reference pressure transducers. The hydraulic module is available in three versions, as a low-pressure version with a control range of 5 ... 700 bar [75 ... 10,000 psi], a high-pressure version with a control range of 20 ... 1,600 bar [290 ... 23,000 psi] and an extended pressure version with a control range of 25 ... 4,000 bar [360 ... 58,000 psi]. The complete Hydraulic Pressure Controller system is available as a 19" plug-in case or built into a 19" rack. The sensors can be changed via the front of the hydraulic module, without having to dismantle the controller. Functionality Through specialised technology, the controller regulates the desired pressure value. Maximum simplicity is achieved through the touchscreen and the simple and intuitive menu navigation. In addition, its easy operability is further supported by the availability of numerous menu languages. On the touchscreen, all necessary information such as current measured value and set point can be found. Additionally, the measured values can be displayed in 39 pressure units. The Hydraulic Pressure Controller can be remotely controlled via several different remote interfaces. A wide range of emulation command sets for other pressure controllers are available.

Applications

• Transmitter and pressure gauge manufacturers • Calibration and service companies • Industry (laboratory, workshop and production) • Research and development laboratories

Special features

• Pressure ranges: 5 ... 700 bar up to 25 ... 4,000 bar [75 ... 10,000 psi up to 360 ... 58,000 psi] • Pressure medium: Hydraulic oil or water • Control stability: up to 0.005 % of FS • Accuracy: up to 0.008 % IS-33 • Interchangeable reference pressure transducers

Downloads

CPC8000-H Data sheet .pdf

pdf
Download
