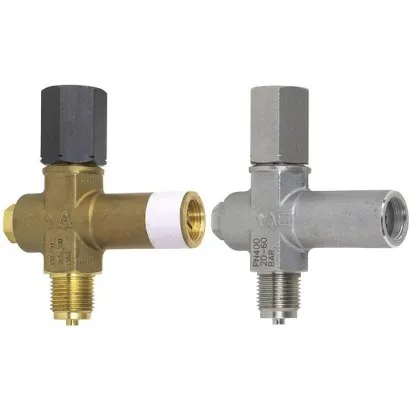

Wika Overpressure Protector, Adjustable, 910.13, Brass Or Stainless Steel

Part Number : 910.13

Brand :
WIKA

The overpressure protector for pressure measuring instruments is a piston valve. Through a helical spring, the outlet position is maintained until the pressure acting on the piston overcomes the back pressure of the spring, thus closing the valve.

View all
Quantity
Description
Downloads
Related products

Description

The overpressure protector for pressure measuring instruments is a piston valve. Through a helical spring, the outlet position is maintained until the pressure acting on the piston overcomes the back pressure of the spring, thus closing the valve. Once the pressure drops below the closing pressure by approx. 25 %, the valve opens again and the piston returns to its rest position under the action of the spring force. Factory setting The closing pressure is set to half of the span of the respective setting range. Set values for factory mounting When mounted onto a pressure measuring instrument by WlKA, the overpressure protector is set to 1.1 times the full scale value of the pressure measuring instrument. Setting the closing pressure If the adjustment screw is turned clockwise, the spring force of the helical spring increases and, with it, the closing pressure. By turning the adjustment screw anti-clockwise, the closing pressure is reached at lower pressure values. For the setting of the optimal closing pressure, the temperature at the measuring location must be taken into account. This overpressure protector is not suitable for use as a controller or for control and regulation purposes.

Applications

• Protection against overpressures which occur beyond the scale range of the pressure measuring instrument • Stainless steel version for aggressive media, also in aggressive environments • Machine building, general plant construction, chemical industry, petrochemical industry, power plants, mining, on-/offshore and environmental technology

Special features

• Version with pressure connection thread in form A or form B • 7 different setting ranges selectable • Nominal pressures to 600 bar • Overpressure safety up to 1,000 bar • Vacuum protected

Downloads

910.13 Data sheets.pdf

pdf
Download

910.13 Technical information.pdf

pdf
Download
