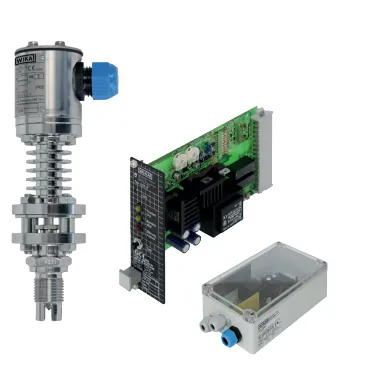

Wika Optoelectronic level switch For the process industry, OLS-S, OLS-H, -269 ... +400 °C, vacuum to 500 bar

Part Number : OLS-S, OLS-H

Brand :
WIKA

The model OLS optoelectronic level switch is used for the detection of limit levels in liquids. This is widely independent of physical characteristics such as refractive index, colour, density, dielectric constant and conductivity. Measurement is also done in small volumes.

View all
Quantity
Description
Downloads
Related products

Description

The model OLS optoelectronic level switch is used for the detection of limit levels in liquids. This is widely independent of physical characteristics such as refractive index, colour, density, dielectric constant and conductivity. Measurement is also done in small volumes. The switches consist of an infrared LED and a phototransistor. The light of the LED is directed into a prism. So long as the sensor tip of the prism is in the gas phase, the light is reflected within the prism to the receiver. When the liquid in the vessel rises and wets approximately 2/3 of the glass tip, the infrared lightbeam into the liquid is interrupted and only a small portion reaches the receiver. This difference is evaluated by the electronics and triggers a switching operation. The instruments are very robust and designed for rough operating conditions. The cable to the switching amplifier does not need any shield, enabling easy and economic cabling. The model OSA-S switching amplifier is operated with an intrinsically safe signal circuit. For the 19" plug-in card version, all operating elements, except for the switch for changing the alarm direction and the potentiometers for the time delay, can be accessed from the front. If incorporated in an add-on case, a transparent cover allows seeing the switching statuses.

Applications

Chemical, petrochemical, natural gas, offshore industries Shipbuilding, machine building, refrigerator units Power generating equipment, power plants Process and drinking water treatment Wastewater and environmental engineering

Special features

Temperature ranges from -269 ... +400 °C Versions for pressure ranges from vacuum to 500 bar Special versions: High pressure, interface measurement Signal processing is made using a separate model OSA-S switching amplifier

Downloads

OLS-S, OLS-H Data sheet LM 31.01.pdf

pdf
Download

OLS-S, OLS-H Data sheet.pdf

pdf
Download

OLS-S, OLS-H Operating Instruction.pdf

pdf
Download
