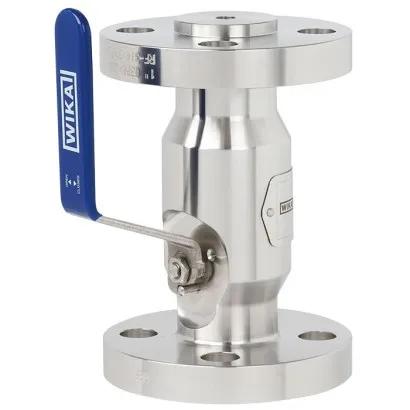

Wika Monoblock, IBF1, With Flange Connection

Part Number : IBF1

Brand :
WIKA

The monoblock has been designed to meet the requirements of the process industry, especially for natural gas and aggressive media applications. The compact design integrates a shut-off valve to separate the process from the instrument side.

View all
Quantity
Description
Downloads
Related products

Description

The monoblock has been designed to meet the requirements of the process industry, especially for natural gas and aggressive media applications. The compact design integrates a shut-off valve to separate the process from the instrument side. For applications with liquid or dirty media, ball valves are recommended due to easy cleaning of the straight-through internal bore. The one-piece case minimises the number of leakage points and thereby reduces the risk of media escaping into the environment. The valve seat design and the redundant seals of the valve body ensure high durability and tightness. In case the soft valve seat fails, the metal-to-metal seat will ensure that the valve can still be operated and set to a safe position. The tightness is guaranteed for the connection between the process and the measuring instrument and towards the atmosphere. The super-finished machining of the internal parts allows a very smooth and precise operation, even at high pressures and after long periods without valve operation. The surface finish helps to prevent corrosion with aggressive media and makes it easier to clean.

Applications

• Oil and gas industry, chemical and petrochemical industries, power plants • For gaseous and liquid aggressive media that are highly viscous or crystallising, also in aggressive environments • Direct connection of pressure measuring instruments to flanged pipelines or vessels without interface valves • Shut-off valve with venting function as tapping point for instruments • For mounting to level indicators or differential pressure instruments in level measurement

Special features

• The monoblock has been designed to meet the requirements of the process industry, especially for natural gas and aggressive media applications. The compact design integrates a shut-off valve to separate the process from the instrument side. • For applications with liquid or dirty media, ball valves are recommended due to easy cleaning of the straight-through internal bore. • The one-piece case minimises the number of leakage points and thereby reduces the risk of media escaping into the environment. The valve seat design and the redundant seals

Downloads

IBF1 Data sheets.pdf

pdf
Download

IBF1 Operating instructions.pdf

pdf
Download
