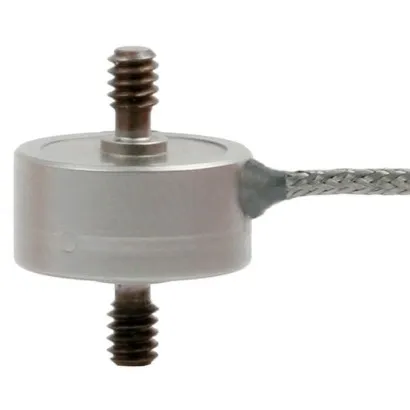

Wika Miniature Tension/Compression Force Transducer, F2221, For Small Measuring Ranges From 10 N

Part Number : F2221

Brand :
WIKA

Miniature tension/compression force transducers are designed for static and dynamic measurement tasks in the direct flux of force. They determine the tension and compression forces in a wide scope of applications. It is possible, for example, to measure the actual force in ropes and rods.

View all
Quantity
Description
Downloads
Related products

Description

Miniature tension/compression force transducers are designed for static and dynamic measurement tasks in the direct flux of force. They determine the tension and compression forces in a wide scope of applications. It is possible, for example, to measure the actual force in ropes and rods. The force is applied to this tension/compression force transducer via threaded bolts, which are located on each side of the cylindrical body. The measurement range starts with a rated force of 10 N. Note To prevent overload, it is advantageous to connect up the force transducer electrically during installation and to monitor the measured value. In mounting the force transducer torsion and bending moments have to be avoided. The force must be applied axial to the centre. Torsion and bending moments must be avoided. Option • High temperature version up to 250 °C • Cable amplifier 4 ... 20 mA or 0 ... 10 V output • Other cable length

Applications

• Construction and apparatus • Production lines, manufacturing plant • Measurement and control facilities • Special equipment and machinery construction • Cable force measurements

Special features

• Measuring ranges 0 ... 10 N up to 0 ... 50 kN • Standard calibration: tension / compression (positive in tension) • Ease of assembly • Small geometries • Stainless steel version

Downloads

F2221 Data sheets.pdf

pdf
Download

F2221 Operating instructions.pdf

pdf
Download
