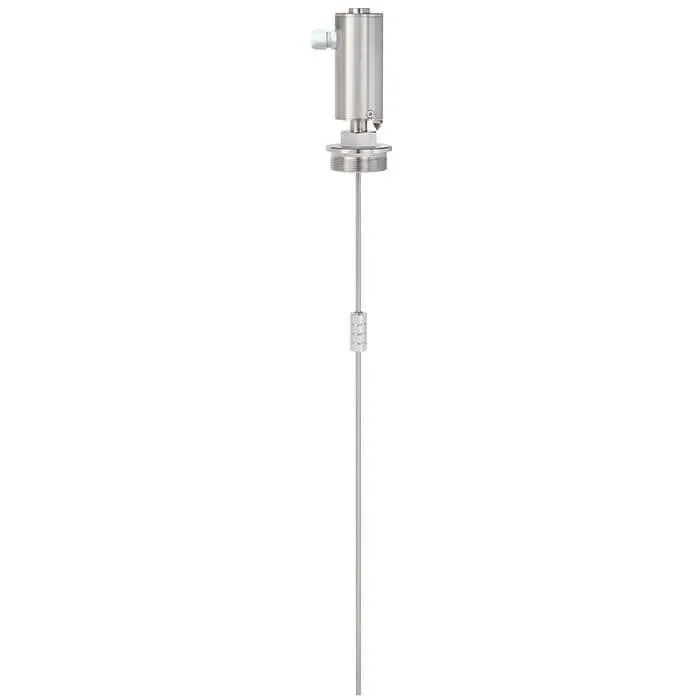

Wika Magnetostrictive level transmitter High-resolution measurement principle, compact design, FLM-CA, -40 ... +250 °C, Vacuum to 40 bar, ρ ≥ 580 kg/m3
Part Number : FLM-CA
Brand :
![WIKA]()
The model FLM-CA magnetostrictive level transmitter is used for the high-accuracy, continuous level detection of liquids and is based on determining the position of a magnetic float according to the magnetostrictive measurement principle.
View all
Description
The model FLM-CA magnetostrictive level transmitter is used for the high-accuracy, continuous level detection of liquids and is based on determining the position of a magnetic float according to the magnetostrictive measurement principle. The FLM-CA emits a 4 … 20 mA output signal, which is configured via buttons within the probe head. Optionally, the FLM-CA is also available with HART® protocol as a digital output signal. Probe lengths of 100 mm to 3 m and also various temperature and pressure ranges are possible. In comparison to the FLM-S, the FLM-CA is particularly notable for its very compact and space-saving design. In addition, it can be used in applications with vibrations up to 4 g.
Applications
High-accuracy level detection for liquid mediaSpecial features
Compact and space-saving design Output signal 4 ... 20 mA (NAMUR NE43) or HART® ver. 6 Operating limits: Operating temperature: T = -40 ... +250 °C Operating pressure: P = Vacuum to 40 bar Limit density: ? ? 580 kg/m3 Explosion-protected version (option) Vibration resistant version (option)Related Products
![]()
