Wika Magnetostrictive level transmitter For sanitary applications, high-resolution measurement principle, FLM-H
Part Number : FLM-H
Brand :
![WIKA]()

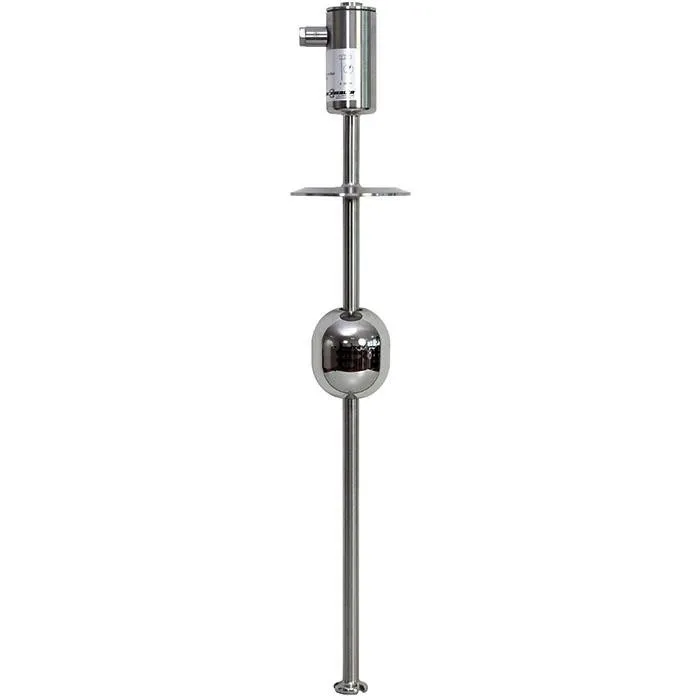

The model FLM-H magnetostrictive level transmitter has been specifically designed for the requirements of the pharmaceutical and biotechnology industries.
View all
Description
The model FLM-H magnetostrictive level transmitter has been specifically designed for the requirements of the pharmaceutical and biotechnology industries. The level transmitter is particularly suitable for the special conditions of CIP/SIP cleaning processes, such as chemical stabilitytowards cleaning liquids and high temperatures. The guide tube is directly welded to the process connection. This guarantees a crevice-free joint, additional seals are not required. A special advantage of the level transmitter is its easy parameterisation and fast commissioning. A 4 ... 20 mA HART® signal is available as the electronic output signal. The hygienically designed sensor housing, with an ingress protection of up to IP68, offers a secure protection for external cleaning with splash water and enables its use in high-humidity environments. The model FLM-H level transmitter fulfils the high requirements of sanitary applications. In addition, the FLM-H is also available as an angled variant (up to 90°).
Applications
Bioreactor and fermenter applications Applications with heavy foaming Applications with a dynamic dielectric constant Pharmaceuticals and biotechnology with CIP and SIP processesSpecial features
Fully welded and dead-space free Insensitive to foaming, ideal for interface measurement High-precision level measurement: accuracy < 0.5 mm [0.02 in] 3-A marked hygienic designRelated Products
![]()
