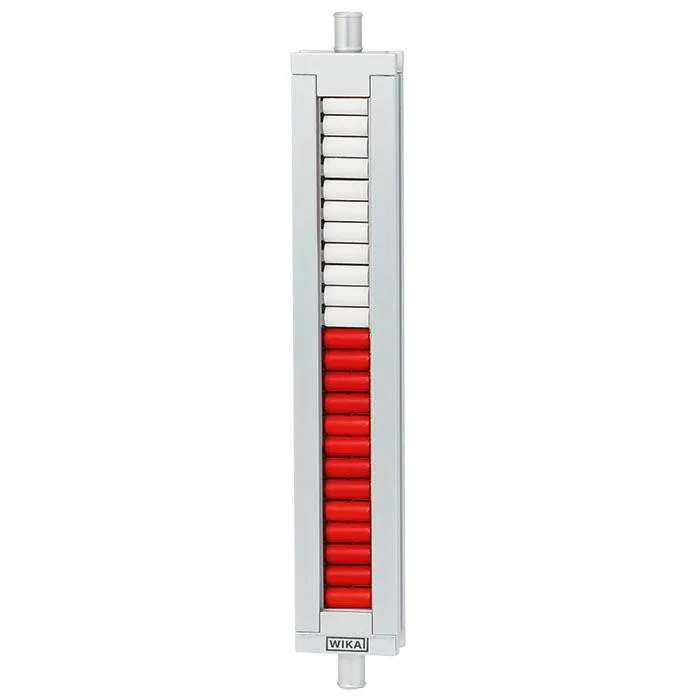

Wika Magnetic display For bypass level indicators, BMD, -200 ... +450 °C

Part Number : BMD

Brand :
WIKA

The model BMD magnetic displays are used in combination with bypass level indicators for the display of levels. A magnetic system built into the float transmits the liquid level, contact-free, to the externally mounted display.

View all
Quantity
Description
Downloads
Related products

Description

The model BMD magnetic displays are used in combination with bypass level indicators for the display of levels. A magnetic system built into the float transmits the liquid level, contact-free, to the externally mounted display. In this are fitted, at 10 mm intervals, red/white plastic rollers or stainless steel flaps with bar magnets. Through the directional magnetic field of the permanent magnetic system in the bypass float, the magnetic rollers or flaps, through the wall of the bypass chamber, are turned through 180°. With this functional principle of the magnetic display, the level of a vessel is indicated as a coloured column, without power supply. An integrated T-slot serves for the fastening of further attachment parts such as scales, sensors and switches. For selecting the optimum magnetic display (plastic rollers/stainless steel flaps, case, scale, measuring range etc.) we offer application-related technical advice.

Applications

Display bar for the visualisation of levels in combination with bypass level indicators Individual design and corrosion resistant materials make the products suitable for a broad range of applications Chemical, petrochemical, natural gas, offshore, shipbuilding, machine building, power generating equipment, power plants Process water and drinking water treatment, food industry, pharmaceutical industry

Special features

Measured value display by means of rollers or flaps with permanent magnets Medium temperatures from -200 ... +450 °C Splash-proof or hermetically sealed Without power supply Hermetically sealed from the process

Downloads

BMD Data sheet.pdf

pdf
Download

BMD Data sheet #1.pdf

pdf
Download
