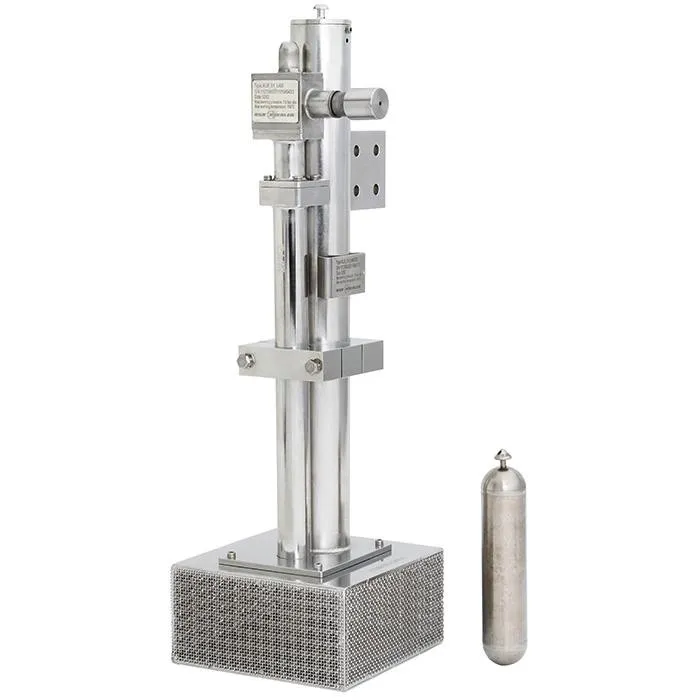

Wika Level sensor with reed chain technology For Nuclear Power Plants, ALM, -10 °C ...+70 °C

Part Number : ALM

Brand :
WIKA

ALM level sensors are used to measure and transmit the level of liquids in conjunction with a customer’s control unit outside of the containment area.

View all
Quantity
Description
Downloads
Related products

Description

ALM level sensors are used to measure and transmit the level of liquids in conjunction with a customer’s control unit outside of the containment area. It is based on the float principle with magnetic transmission in a 3-wire potentiometer circuit. The resistance measuring chain is closely stepped. Due to this assembly the generated voltage is approximately continuous. Signal transmission over large distances and use in hazardous areas are possible.

Applications

Power generating equipment, power plants, nuclear power plants Water basins Cooling water tanks/pools

Normal operating conditions

Process- and system-specific solutions possible Operating conditions: Operating temperature: T = -10 °C ...+70 °C [+158 °F] Operating pressure: ambient Lengths: up to 20 m [65 ft] Humidity: 100 % Operational radiation dose: ? 160 kGy [16 MRad]

Accident conditions

Accident temperature: 156 °C [312 °F] Accident pressure: 7 bar [0.7 MPa] Accident mission time: 1 year Accident rad. dose: integrated 5.05 MGy [505 MRad] Seismic acceleration: up to 2.5 g (higher accelerations up to 5 g on demand)

Downloads

ALM Data sheet.pdf

pdf
Download
