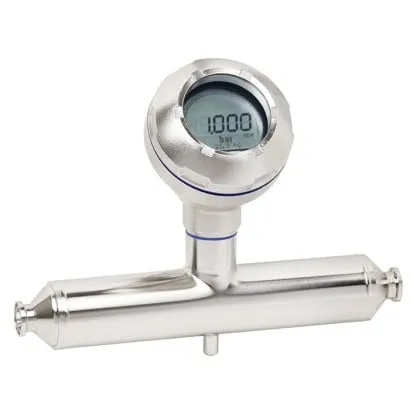

Wika In-Line Process Transmitter, DMSU22SA, Hygienic Design

Part Number : DMSU22SA

Brand :
WIKA

The certified hygienic design of the model DMSU22SA in-line process transmitter fulfils the constantly growing requirements for process monitoring on plant for sanitary applications. Measurement is done by means of a deformation of the inner sensor tube of the double-tube system due to the applied pressure.

View all
Quantity
Description
Downloads
Related products

Description

The certified hygienic design of the model DMSU22SA in-line process transmitter fulfils the constantly growing requirements for process monitoring on plant for sanitary applications. Measurement is done by means of a deformation of the inner sensor tube of the double-tube system due to the applied pressure. This deformation produces a signal change, which the transmitter converts into the measuring signal. This version combines the demands for digitalisation and process reliability. Versions with HART® protocol are able to transmit not only the measuring signal, but also the status of the continuous sensor monitoring of the double-tube system to the process control system as required. The patented sensor tube solution of the in-line process transmitter, in combination with the sensor monitoring within the double-tube system, provides optimum protection against process and environmental contamination. The in-line process transmitter can be supplied with all common process connections for sanitary applications and fulfils the applicable standards for them, e.g. EHEDG, 3-A and ASME BPE. This product, WIKA model DMSU22SA, includes a patented WIKA development (e.g. US2021404898A1).

Applications

• Hygienic in-line pressure measurement for the pharmaceutical industry and for aseptic food processing • Suitable for the production of active pharmaceutical ingredients (API) • For the monitoring of processes with sterile steam • For gases, vapour; liquid, pasty, powdery and crystallising media

Special features

• Dead-space free hygienic design with thick-walled sensor tube from stainless steel • In-line pressure measurement with sensor tube without system fill fluid • Continuous sensor monitoring of the double-tube system prevents contamination of process and environment • Suitable for SIP and CIP • EHEDG-certified and 3-A-compliant

Downloads

DMSU22SA Data sheets.pdf

pdf
Download

DMSU22SA Operating instructions.pdf

pdf
Download
