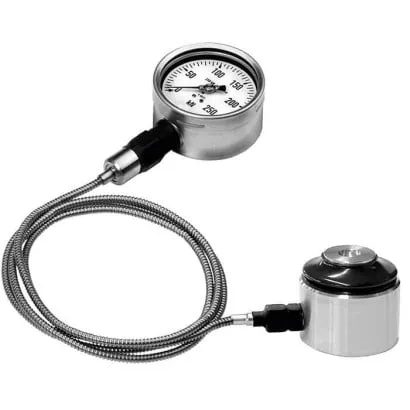

Wika Hydraulic Compression Force Transducer, F1125, Heavy-Duty Version Up To 400 Kn

Part Number : F1125

Brand :
WIKA

The heavy-duty hydraulic compression force transducers are available up to a rated force of 400 kN. Through their robust design, they are particularly suited to harsh environmental conditions such as in geotechnology and specialist foundation engineering.

View all
Quantity
Description
Downloads
Related products

Description

The heavy-duty hydraulic compression force transducers are available up to a rated force of 400 kN. Through their robust design, they are particularly suited to harsh environmental conditions such as in geotechnology and specialist foundation engineering. The hydraulic force measurement is a simple way to capture and display the forces occurring in various applications. Hydraulic force measurement makes use of a piston-case combination with different seals as a sensor unit. The force acting is the product of the area and the pressure. For the display of the pressure, either pressure gauges, pressure sensors or pressure measuring instruments with contact devices can be used. The scale of the display instrument can be defined in various units (e.g. N, kN, kg, t). Leak-tightness warranty The warranty on leak tightness of the hydraulic force measuring unit was extended to 5 years. A force transducer that starts to leak within this period will be repaired free of charge. Use of the force measuring unit as intended is a prerequisite for the extended 5-year warranty.

Applications

• Equipment manufacturing • Geotechnology and special civil engineering • Construction of jigs and fixtures • Special-purpose machine building • Measuring and control systems

Special features

• Measuring ranges 0 ... 4 kN to 0 ... 400 kN • Relative linearity error ±1.0 ... 1.6 % with analogue pressure gauge, ±0.5 % with digital pressure gauge or pressure sensor (For rated forces below 500 N, the relative linearity error is ±1.6 % Fnom for all connected measuring instruments.) • Piston stroke ? 0.8 mm • Operates without supply voltage • 5-year leak-tightness warranty (Use of the force measuring unit as intended is a prerequisite for the extended 5-year warranty.)

Downloads

F1125 Data sheets.pdf

pdf
Download

F1125 Operating instructions.pdf

pdf
Download
