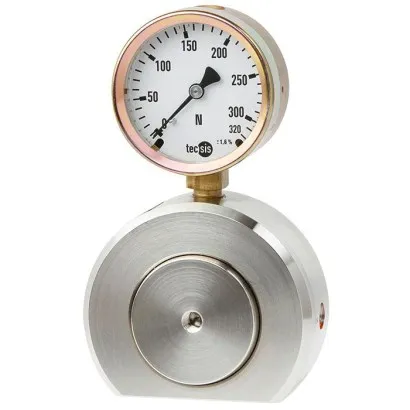

Wika Hydraulic Compression Force Transducer, F1119, Clamping Force Test Instrument Up To 120 Kn

Part Number : F1119

Brand :
WIKA

The model F1119 (NS 20) hydraulic force transducer enables the simple and economical measurement in vices and display of forces of measuring ranges from 320 N to 120 kN. The flattened case of this compression force transducer enables a stable force measurement.

View all
Quantity
Description
Downloads
Related products

Description

The model F1119 (NS 20) hydraulic force transducer enables the simple and economical measurement in vices and display of forces of measuring ranges from 320 N to 120 kN. The flattened case of this compression force transducer enables a stable force measurement. The force is measured using the principle of hydraulics: The force acting on a piston leads to a pressure increase that can be visualised on a connected display instrument. The scale of the display instrument can be defined in various units, e.g. N, kN, kg, t. Leak-tightness warranty The warranty on leak tightness of the hydraulic force measuring unit was extended to 5 years. A force transducer that starts to leak within this period will be repaired free of charge. Use of the force measuring unit as intended is a prerequisite for the extended 5-year warranty.

Applications

• Force measurement in vices and clamping systems • Equipment manufacturing • Construction of jigs and fixtures • Special machine building • Measuring and control systems

Special features

• Measuring ranges 0 ... 320 N to 0 ... 120 kN • Flattened case for stable measurement • Relative linearity error ±1.0 ... 1.6 % Fnom with analogue pressure gauge, ±0.5 % Fnom with digital pressure gauge or pressure sensor (For rated forces below 500 N, the relative linearity error is ±1.6 % Fnom for all connected measuring instruments.) • Operates without supply voltage • 5-year leak-tightness warranty (Use of the force measuring unit as intended is a prerequisite for the extended 5-year warranty.)

Downloads

F1119 Data sheets.pdf

pdf
Download

F1119 Operating instructions.pdf

pdf
Download
