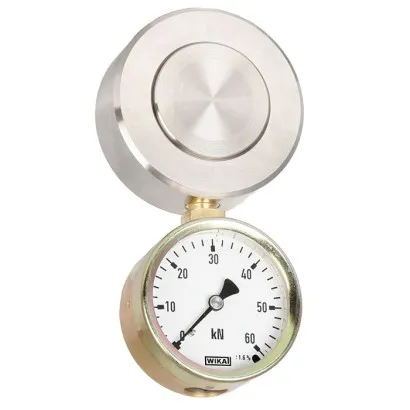

Wika Hydraulic Compression Force Transducer, F1106, Compact Version To 60 Kn

Part Number : F1106

Brand :
WIKA

The compact hydraulic compression force transducer is available from a rated load of 160 N to 60 kN. Hydraulic force measurement is a simple way to capture and display the forces occurring in various applications. Applications for hydraulic force measurement can be found in equipment manufacturing, in device and special machine building and also with measuring and control systems.

View all
Quantity
Description
Downloads
Related products

Description

The compact hydraulic compression force transducer is available from a rated load of 160 N to 60 kN. Hydraulic force measurement is a simple way to capture and display the forces occurring in various applications. Applications for hydraulic force measurement can be found in equipment manufacturing, in device and special machine building and also with measuring and control systems. The force is measured using the principle of hydraulics: The force acting on a piston leads to a pressure increase that can be visualised on a connected display instrument. The scale of the display instrument can be defined in various units e.g. N, kN, kg, t. Leak-tightness warranty The warranty on leak tightness of the hydraulic force measu-ring unit was extended to 5 years. The prerequisite for this is of course the intended use of the force measuring unit. A force transducer that starts to leak within this period will be repaired free of charge. In this way, we are underlining the quality of our hydraulic force transducers and our confidence in our own technology.

Applications

• Equipment manufacturing • Construction of jigs and fixtures • Special machine building • Measuring and control systems

Special features

• Measuring ranges 0 ... 160 N to 0 ... 60 kN • Relative linearity error: o ±1.0 ... ±1.6 % Fnom with analogue pressure gauge o ±0.5 % Fnom with digital pressure gauge or pressure sensor • Piston stroke ? 0.5 mm • Operates without supply voltage • 5-year leak-tightness warranty >

Downloads

F1106 Data sheets.pdf

pdf
Download

F1106 Operating instructions.pdf

pdf
Download
