Wika Hydraulic Compression Force Transducer, F1103, 3-Jaw Clamping Force Test Instrument Ns 3x6 With Bourdon Tube Pressure Gauge 232.57

Part Number : F1103

Brand :
WIKA

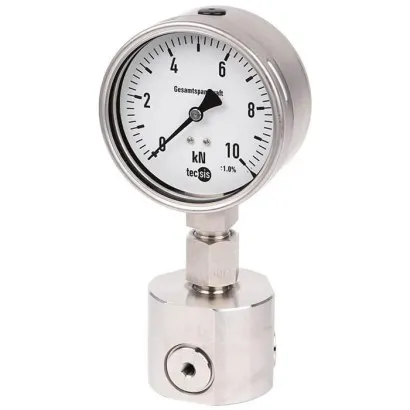

The hydraulic force transducer model F1103, version NS 3 x 6, is suited for regular testing of the clamping force in 3-jaw chucks. It thereby ensures optimum use of the clamping jaws.

View all
Quantity
Description
Downloads
Related products

Description

The hydraulic force transducer model F1103, version NS 3 x 6, is suited for regular testing of the clamping force in 3-jaw chucks. It thereby ensures optimum use of the clamping jaws. Hydraulic force measurement is a simple way to capture and display the forces occurring in various applications. The force is measured using the principle of hydraulics: The force acting on a piston leads to a pressure increase that can be visualised on a connected display instrument. The scale of the display instrument can be defined in various units (e.g. N, kN, kg, t). Leak-tightness warranty The warranty on leak tightness of the hydraulic force measuring unit was extended to 5 years. A force transducer that starts to leak within this period will be repaired free of charge. Use of the force measuring unit as intended is a prerequisite for the extended 5-year warranty.

Applications

• Measurement of clamping force in three-jaw chucks • Equipment manufacturing • Construction of jigs and fixtures • Special machine building • Measuring and control systems

Special features

• Measuring ranges 0 ... 1.1 kN to 0 ... 180 kN • Relative linearity error ±1.0 ... 1.6 % Fnom with analogue pressure gauge, ±0.5 % Fnom with digital pressure gauge or pressure sensor (For rated loads below 500 N, the accuracy is ±1.6 % Fnom for all connected measuring instruments.) • Piston stroke ? 0.5 mm, force introduction as total clamping force • Operates without supply voltage • 5-year leak-tightness warranty (Use of the force measuring unit as intended is a prerequisite for the extended 5-year warranty.)

Downloads

F1103 Data sheets.pdf

pdf
Download
