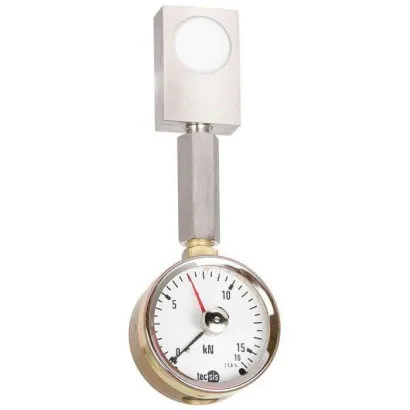

Wika Hydraulic Compression Force Transducer, F1102, Welding Tongs Test Instrument Up To 36 Kn

Part Number : F1102

Brand :
WIKA

The hydraulic force transducer model F1102 serves to easily capture and display forces in applications of limited mounting space. With its plastic piston, the transducer is especially suited to measure compression forces occurring during closing of welding tongs.

View all
Quantity
Description
Downloads
Related products

Description

The hydraulic force transducer model F1102 serves to easily capture and display forces in applications of limited mounting space. With its plastic piston, the transducer is especially suited to measure compression forces occurring during closing of welding tongs. Hydraulic force measurement is a simple way to capture and display the forces occurring in various applications. The force measurement is made using the principle of hydraulics: The force acting on a piston leads to a pressure increase which can be visualised on a connected display instrument. The scale of the display instrument can be defined in various units (e.g. N, kN, kg, t). Leak-tightness warranty The warranty on leak tightness of the hydraulic force measuring unit was extended to 5 years. A force transducer that starts to leak within this period will be repaired free of charge.

Applications

• Equipment manufacturing • Construction of jigs and fixtures • Special-purpose machine building • Measuring and control instruments

Special features

• Measuring ranges 0 ... 100 N to 0 ... 36 kN • Relative linearity error ±1.0 ... 1.6% Fnom with analogue pressure gauge, ±0.5 % Fnom with digital pressure gauge or pressure sensor (For rated forces below 500 N, the relative linearity error is ±1.6% Fnom for all connected measuring instruments.) • Piston stroke ? 0.5 mm • Operates without supply voltage • 5-year leak-tightness warranty (Use of the force measuring unit as intended is a prerequisite for the extended 5-year warranty.)

Downloads

F1102 Data sheets.pdf

pdf
Download

F1102 Operating instructions.pdf

pdf
Download
