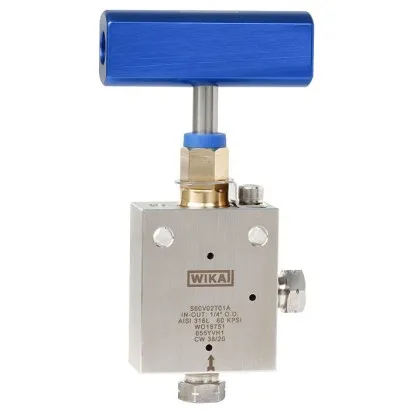

Wika High-Pressure Needle Valve, HPNV, Nominal Pressure Of 15,000 ... 60,000 Psi [1,034 ... 4,136 Bar]

Part Number : HPNV

Brand :
WIKA

The model HPNV high-pressure needle valves have been developed for high-pressure applications of 15,000 ... 60,000 psi [1,034 ... 4,136 bar]. The valve is particularly suitable for control panels, where the space is restricted, or for test benches.

View all
Quantity
Description
Downloads
Related products

Description

The model HPNV high-pressure needle valves have been developed for high-pressure applications of 15,000 ... 60,000 psi [1,034 ... 4,136 bar]. The valve is particularly suitable for control panels, where the space is restricted, or for test benches. The non-rotating valve spindle prevents seizing and scoring, even if the valve is rarely opened or only partially closed. With the blow-out proof design of the valve, working safety is ensured, especially in applications with high pressure loading and frequent pressure cycles. The valve can be fully opened/closed with only 5 turns. The risk of unintentional loosening of the bonnet is minimised by a mechanical stop for the handle. Quick assembly and disassembly of the handle is possible thanks to the self-centring system. The valve design and high-quality sealing materials ensure long operating times and high tightness. On request, WIKA offers the professional assembly of valves and pressure measuring instruments and also other accessories into a ready-to-install solution, also known as an instrument hook-up. To ensure the performance of the complete system, an additional leak test is carried out on the instrument hook-up.

Applications

• Oil and gas, chemical industry, machine building and automation • For injection systems, test benches, hydraulic power packs, blow-out protection • Blasting/cutting with water, high-pressure cleaning

Special features

• Low-wear design due to non-rotating spindle tip in the bonnet • Low torque and smooth operation of valve handle even at high pressure • Leak-tested tightness in accordance with BS6755 / ISO 5208 leakage rate A • Large selection of materials and configurations available • Customer-specific combination of valves and measuring instruments (instrument hook-up) on request

Downloads

HPNV Data sheets.pdf

pdf
Download

HPNV Operating instructions.pdf

pdf
Download

HPNV Technical information.pdf

pdf
Download
