Wika High-Capacity Load Cell Up To 300 T, F1270

Part Number : F1270

Brand :
WIKA

The model F1270 high-capacity load cell is available with rated loads of 7.5 t to 300 t and has been specially developed for application in container and silo weighing technology.

View all
Quantity
Description
Downloads
Related products

Description

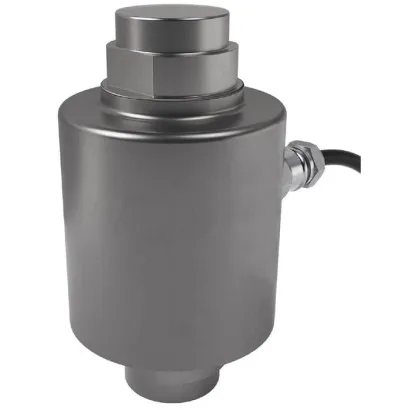

The model F1270 high-capacity load cell is available with rated loads of 7.5 t to 300 t and has been specially developed for application in container and silo weighing technology. It is also suitable for use in harsh industrial applications and in the construction of testing and production plants, where robustness and long-term stability are required. With its special geometry this high-capacity load cell is excellently suited for installation in truck scales. Here it automatically aligns itself in such a way that there is no need for complex and precise positioning of the vehicle on the weighing platform. The use of stainless steel, the welded cover of the strain gauge measuring elements and a glass feed-through for the cable connection allow trouble-free use even under unfavourable ambient conditions. Due to the integrated radii of the load supports, the installation can be carried out with simple force introduction elements. Options • Integrated surge arresters (4 x) • Accessory mounting kits

Applications

• Weighing, dosing systems, silo weighing • Production lines • Testing and production plants • Truck scales

Special features

• Measuring ranges 0 ... 7.5 t to 0 ... 300 t • For compression forces • Ingress protection IP68, hermetically sealed • Relative linearity error from 0.0166 % Fnom

Downloads

F1270 Data sheets.pdf

pdf
Download
