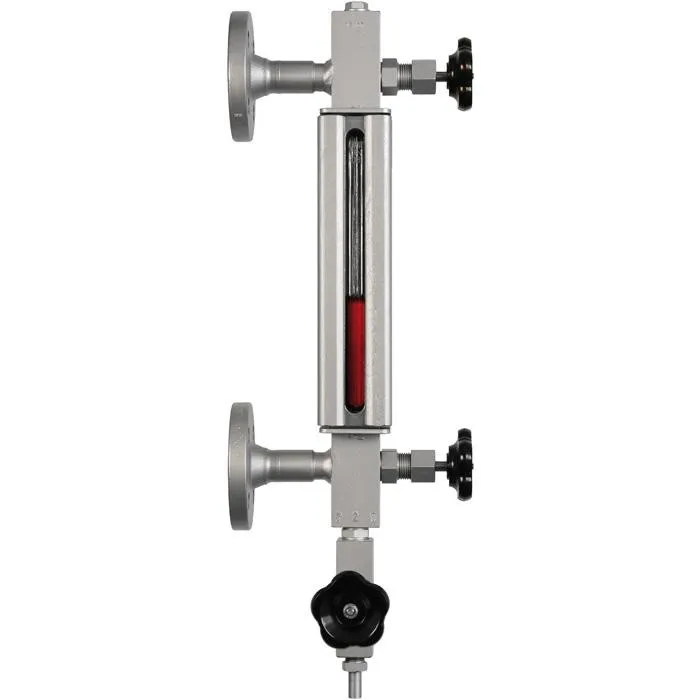

Wika Glass level gauge For direct indication of levels, LGG, -196 ... +374 °C, Vacuum to 250 bar
Part Number : LGG
Brand :
![WIKA]()
The main element of the glass level gauge is the gauge body. Incorporated into this gauge body are the liquid channel (if necessary the heating channel) and the seating faces for the chambered seals and sight glasses.
View all
Description
The main element of the glass level gauge is the gauge body. Incorporated into this gauge body are the liquid channel (if necessary the heating channel) and the seating faces for the chambered seals and sight glasses. Onto the gauge body are mounted, or are already integrated, the valve heads and process connections. Drain or vent are also possible. The glasses and/or mica shields as well as the seals are fitted, secured and sealed with the aid of U-bolts and covers or pressure frames. Glasses from borosilicate glass in accordance with DIN 7081 are used. For steam, the glasses can be used to 243 °C [469.4 °F], with mica design to 300 °C [572 °F]. For other media, temperatures to 300 °C are possible, in special cases to 374 °C [705.2 °F]. The use of mica is needed for specific applications.
Applications
Continuous level indication without auxiliary power Direct indication of the level Individual design and corrosion-resistant materials make the products suitable for a broad range of applications Chemical industry, petrochemical industry, oil and natural gas extraction (on- and offshore), shipbuilding, machine building, power generating equipment, power plants Oil and gas, heat transfer and refrigeration systems, plants for cryogenicsSpecial features
Process- and procedure-specific production Operating limits: Operating temperature: -196 ... +374 °C [-320.8 ... +705.2 °F] Operating pressure: Vacuum to 250 bar [3,625.9 psi] Wide variety of different process connections and materials Illumination optional Heating and/or insulation optionalRelated Products
![]()
