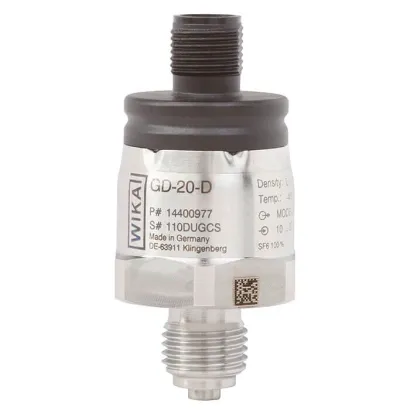

Wika Gas Density Sensor, GD-20, For Gas Density, Temperature And Pressure Of Insulating Gases, With Modbus® Or Analogue 4 ... 20 Ma Signal
.webp)
.webp)
Part Number : GD-20
Brand :
![WIKA]()
In order to prevent system failures in switchgear and network outages, the permanent monitoring of the gas density is essential.
View all
Description
Permanent monitoring In order to prevent system failures in switchgear and network outages, the permanent monitoring of the gas density is essential. The model GD-20 calculates the current gas density from the pressure and temperature using a complex virial equation in the gas density sensor´s powerful microprocessor. Pressure changes resulting from thermal effects will be compensated by this and will not affect the output value. Modbus® fieldbus The RS-485 interface communicates using the Modbus® RTU protocol. The instrument's output parameters and their units can be configured and read according to requirements.The GD-20 model can be freely configured at the factory for any defined gas mixture consisting of SF6, N2, CF4, O2, CO2, 3M™ Novec™ 4710, He and Ar. The calculation is based on the partial pressure method of the individual gas components. Signal stability Due to its high long-term stability, the sensor is maintenance-free and requires no recalibration. Due to the hermetically sealed weld seam and a measuring cell design without sealing elements, the permanent sealing of the measuring cell is ensured. The gas density sensor is also available with analogue output signal (4 ... 20 mA) for output of the compensated pressure (p at 20 °C [68 °F]).
Special features
• Permanent monitoring of the relevant gas condition parameters in closed tanks• For internal and external SF6-insulated equipment• Density measurement of alternative gases in electrical equipment or in the laboratoryRelated Products
![]()
