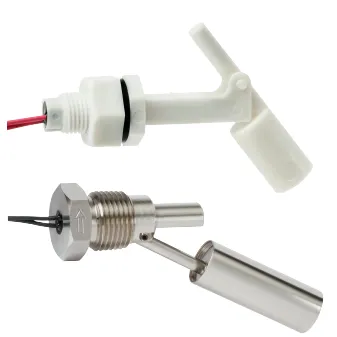

Wika Float Switch For horizontal installation, miniature design, HLS-M, -40 ... +120 °C, P = 5 bar, ρ ≥ 800 kg/m3

Part Number : HLS-M

Brand :
WIKA

With its compact design, the model HLS-M float switch for horizontal installation in miniature design is ideally suited for use in small tanks, for indicating minimum/maximum levels.

View all
Quantity
Description
Downloads
Related products

Description

With its compact design, the model HLS-M float switch for horizontal installation in miniature design is ideally suited for use in small tanks, for indicating minimum/maximum levels. The float is attached to a supported, swivelling lever and moves with the level of the medium being measured. By means of a permanent magnet, when a preset switch point is reached, a reed contact (inert gas contact) is actuated. By using a magnet and reed contact the switching operation is non-contact, free from wear and needs no power supply. The contacts are potential-free. The switching function refers to a rising liquid level: Standard use as normally open contact (can be used as normally closed contact by a 180° rotation). The float switch is simple to mount and maintenance-free, so the costs of mounting, commissioning and operation are low.

Applications

Level monitoring and level indication of liquids Level detection for almost all liquid media Pump and level control Alarm signals Dry-run and overflow protection

Special features

Lateral installation in the tank Operating limits: Operating temperature: T = -40 ... +120 °C Operating pressure: P = 5 bar Limit density: ? ? 800 kg/m3 Plastic and stainless steel versions Space-saving installation Switch consists of only one component

Downloads

HLS-M Data sheet LM 30.06.pdf

pdf
Download

HLS-M Operating Instruction.pdf

pdf
Download
