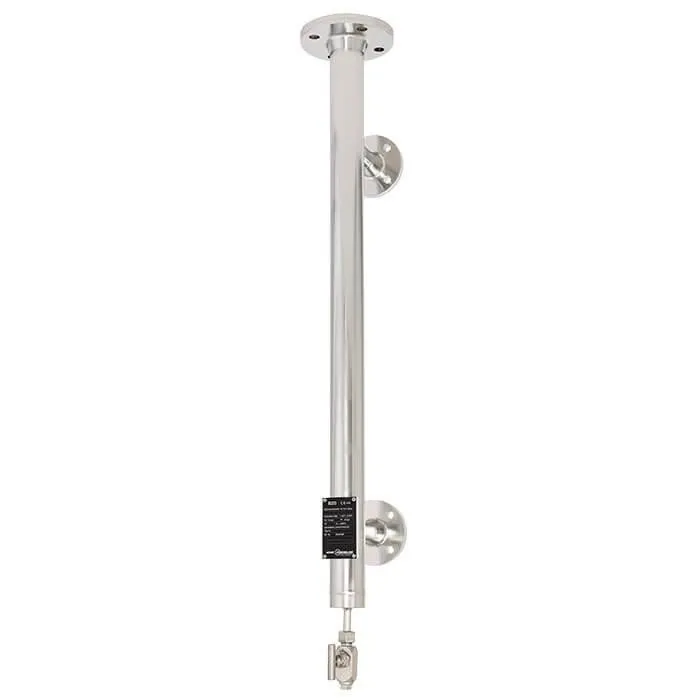

Wika External chamber For level measurement with inserted sensors, BZG, -196 ... +450 °C, Vacuum up to 400 bar
Part Number : BZG
Brand :
![WIKA]()
The external chamber model BZG consists of an external chamber vessel that is mounted laterally to a vessel using at least 2 process connections (flange, thread or weld stub).
View all
Description
The external chamber model BZG consists of an external chamber vessel that is mounted laterally to a vessel using at least 2 process connections (flange, thread or weld stub). Through this type of arrangement, the level in the external chamber corresponds to the level in the vessel. The level is measured by a measuring instrument inserted additionally in the external chamber, for example model FLR or FLS, or by a guided wave radar.
Applications
Level detection for almost all liquid media Individual design and corrosion-resistant materials make the products suitable for a broad range of applications Chemical industry, petrochemical industry, oil and natural gas extraction (on- and offshore), shipbuilding, machine building, power generating equipment, power plantsSpecial features
Process- and procedure-specific production Operating limits: Operating temperature: T = -196 ... +450 °C Operating pressure: P = Vacuum up to 400 bar Wide variety of different process connections and materials Mounting of level sensors and guided wave radars possible as an optionRelated Products
![]()
