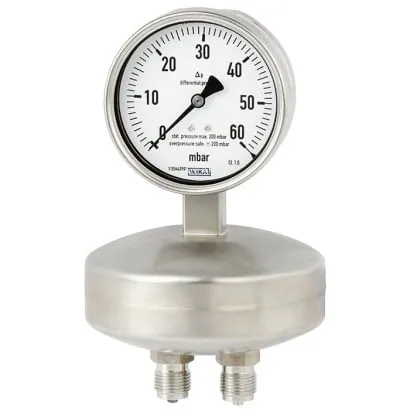

Wika Differential Pressure Gauge, 736.51, For very low differential pressures, from 2.5 mbar, with capsule element

Part Number : 736.51

Brand :
WIKA

The model 736.51 capsule pressure gauge is based upon the proven capsule measuring system and is suitable for very low pressures. On pressurisation, the expansion of the capsule element, proportional to the incident pressure, is transmitted to the movement and indicated.

View all
Quantity
Description
Downloads
Related products

Description

The model 736.51 capsule pressure gauge is based upon the proven capsule measuring system and is suitable for very low pressures. On pressurisation, the expansion of the capsule element, proportional to the incident pressure, is transmitted to the movement and indicated. For the version with switch contact, magnetic snap-action contacts, reed switches, and electronic contacts are available. For triggering programmable logic controllers (PLC), electronic contacts and reed switches can be used.

Applications

• Differential pressure measurement at measuring locations with very low differential pressures, for transparent, gaseous, dry, clean, oil- and grease-free media, also in aggressive environments • ? media chamber also suitable for corrosive media • Process industry: Chemical industry, petrochemical industry, on/offshore • Filter monitoring in ventilation and heating systems or in overpressure and clean rooms • Differential pressure controlled monitoring of ventilator and blast pressures

Special features

• Differential pressure measuring ranges from 0 … 2.5 mbar • Ingress protection IP66 • Case and wetted parts from stainless steel • Version with switch contact for PLC applications

Downloads

736.51 Data sheet.pdf

pdf
Download

736.51 Operating Instructions.pdf

pdf
Download
