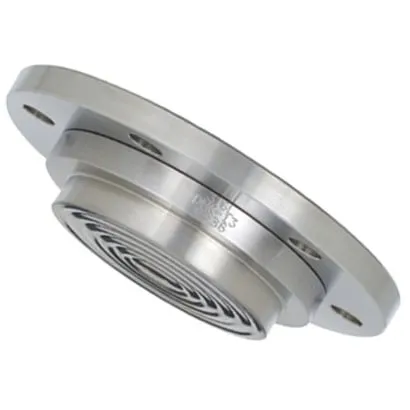

Wika Diaphragm Seals, 990.23, For The Pulp And Paper Industry

Part Number : 990.23

Brand :
WIKA

Diaphragm seals are used for the protection of pressure measuring instruments in applications with difficult media. In diaphragm seal systems, the diaphragm of the diaphragm seal effects the separation of the instrument and the medium.

View all
Quantity
Description
Downloads
Related products

Description

Diaphragm seals are used for the protection of pressure measuring instruments in applications with difficult media. In diaphragm seal systems, the diaphragm of the diaphragm seal effects the separation of the instrument and the medium. The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the diaphragm seal system. For the implementation of demanding customer applications, there are a wide variety of designs, materials and system fill fluids available. For further technical information on diaphragm seals and diaphragm seal systems see "Application, operating principle, designs". The model 990.23 diaphragm seal has been developed for use in pulp manufacture or waste-paper processing applications. Mounting of the diaphragm seal to the measuring instrument may be made via a direct connection, for high temperatures via a cooling element or via a flexible capillary. Furthermore, versions with 90° pipe elbow and vibration damper are available. For the material selection WIKA offers a variety of solutions, in which the upper body of the diaphragm seal and the wetted parts can be made of identical or different materials. The wetted parts can, as an alternative, be coated.

Applications

• Highly viscous, hardening or particle-laden media • Pulp manufacture • Waste-paper processing

Special features

• Rotatable retainer flange • Versions with 90° pipe elbow and vibration damper

Downloads

990.23 Data sheets.pdf

pdf
Download

990.23 Operating instructions.pdf

pdf
Download

990.23 Technical information.pdf

pdf
Download
