Wika Diaphragm Seal With Threaded Connection, 990.36, Flush Diaphragm Or With Protective Plate

Part Number : 990.36

Brand :
WIKA

Diaphragm seals are used for the protection of pressure measuring instruments in applications with difficult media. In diaphragm seal systems, the diaphragm of the diaphragm seal effects the separation of the instrument and the medium.

View all
Quantity
Description
Downloads
Related products

Description

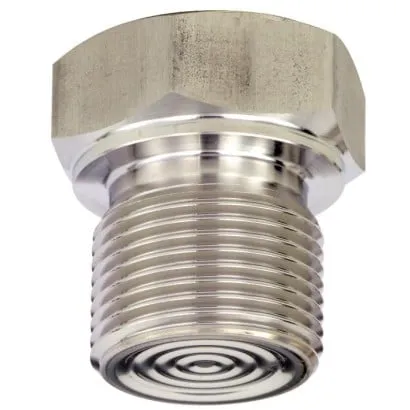

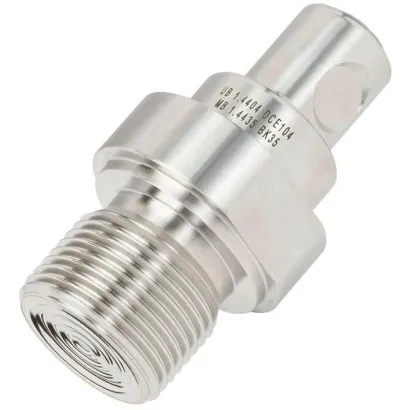

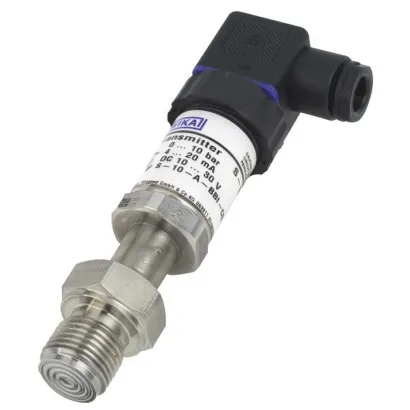

Diaphragm seals are used for the protection of pressure measuring instruments in applications with difficult media. In diaphragm seal systems, the diaphragm of the diaphragm seal effects the separation of the instrument and the medium. The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the diaphragm seal system. For the implementation of demanding customer applications, there is a wide variety of designs, materials and system fill fluids available. For further technical information on diaphragm seals and diaphragm seal systems see "Application, operating principle, designs". The model 990.36 small diaphragm seal with threaded connection and flush diaphragm is suitable for versatile applications. This diaphragm seal, despite its compact dimensions, can also be used for high pressures. Optionally, there are versions available in hygienic design or with protective plates. Mounting of the diaphragm seal to the measuring instrument may be made via a direct connection, for high temperatures via a cooling element or via a flexible capillary. For the material selection WIKA offers a variety of solutions, in which the diaphragm seal and the wetted parts can be made of identical or different materials. The wetted parts can, as an alternative, be coated.

Applications

• For highly viscous or crystallising media • For hard and abrasive media • Screed and concrete pumps • Mining, tunnelling and overburden haulage • Hygienic applications

Special features

• Threaded connection for screwing in directly • Flush diaphragm with compact dimensions • High pressures for the process industry • Version with protective plate for increased wear resistance • Vacuum measuring ranges

Downloads

990.36 Data sheets.pdf

pdf
Download

990.36 Operating instructions.pdf

pdf
Download

990.36 Technical information.pdf

pdf
Download
