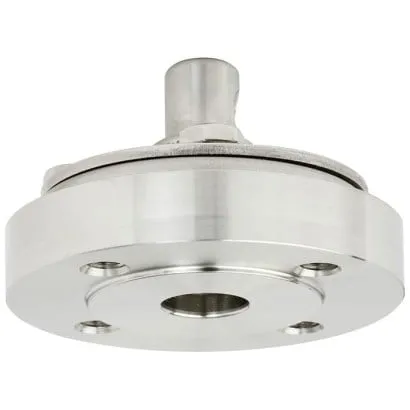

Wika Diaphragm Seal With Flange Connection, 990.12, With Internal Diaphragm, Threaded Design

Part Number : 990.12

Brand :
WIKA

Diaphragm seals are used for the protection of pressure measuring instruments in applications with difficult media. In diaphragm seal systems, the diaphragm of the diaphragm seal effects the separation of the instrument and the medium.

View all
Quantity
Description
Downloads
Related products

Description

Diaphragm seals are used for the protection of pressure measuring instruments in applications with difficult media. In diaphragm seal systems, the diaphragm of the diaphragm seal effects the separation of the instrument and the medium. The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the diaphragm seal system. For the implementation of demanding customer applications, there are a wide variety of designs, materials and system fill fluids available. For further technical information on diaphragm seals and diaphragm seal systems see "Application, operating principle, designs". The model 990.12 diaphragm seal is ideally suited for applications with small process connections. Due to the internal diaphragm low measuring ranges can be realised. The large diameter of the diaphragm effects a lower deviation at the measuring instrument when the temperature changes. By means of optionally available flushing connections, the process side of the flange can be cleaned and flushed as required. Assembly of the diaphragm seal to the measuring instrument may be made via a direct connection, for high temperatures via a cooling element or via a flexible capillary. For the material selection WIKA offers a variety of solutions, in which the upper body of the diaphragm seal and the wetted parts can be made of identical or different materials. The wetted parts can, as an alternative, be coated.

Applications

• Aggressive, contaminated or hot media • Chemical and petrochemical industries • Oil and gas industry

Special features

• Flange with internal welded diaphragm • Mounting to measuring instruments for low pressures, also for differential pressure • Flushing connections optionally available

Downloads

990.12 Data sheets.pdf

pdf
Download

990.12 Operating instructions.pdf

pdf
Download

990.12 Technical information.pdf

pdf
Download
