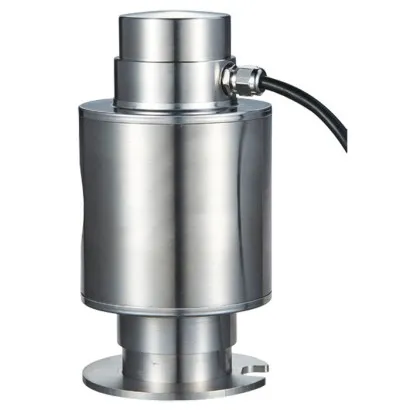

Wika Compression Force Transducer, F1861, With Bilateral Spherical Force Introduction Up To 50 T

Part Number : F1861

Brand :
WIKA

The model F1861 compression force transducer is suitable for measuring of static compression forces up to 50 t. Due to its compactness and robust design, it is particularly suitable for industrial use.

View all
Quantity
Description
Downloads
Related products

Description

The model F1861 compression force transducer is suitable for measuring of static compression forces up to 50 t. Due to its compactness and robust design, it is particularly suitable for industrial use. The field of application of this force transducer lies in various industrial applications in which static forces or weights must be measured. An example is in industrial weighing technology. A special feature of this force transducer is the design using rocker pins with dual spherical force introduction. The force transducer is splash-proof and works reliably, even under difficult operating conditions. Note To avoid overloading, it is advantageous to connect the force transducer electrically during assembly and to monitor the measured value. The measuring force must be introduced through the centre and free of transverse force. When assembling the force transducer, care should be taken that the support surface is flat.

Applications

• Measuring and control systems • Truck scales • Platform scales • Tank weighing

Special features

• Measuring ranges 0 ... 10 t to 0 ... 50 t • Relative linearity error 0.03% Fnom • Material: Stainless steel version, IP67 • Self-centring rocker pins with dual spherical force introduction • Adapter plates available

Downloads

F1861 Data sheets.pdf

pdf
Download
