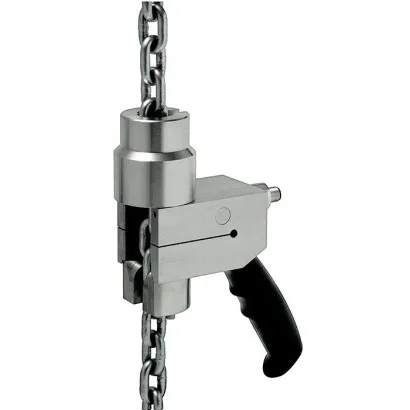

Wika Chain Hoist Test Set, FRKPS, Friction Clutch Testing Up To 3,500 Kg

Part Number : FRKPS

Brand :
WIKA

The FRKPS is used to test the friction clutch on chain hoists. The device consists of a force transducer with chain adapters and a display unit. To perform the test, the force transducer is inserted into the chain, travels upwards with it against the base of the chain hoist and thereby blocks the chain.

View all
Quantity
Description
Downloads
Related products

Description

The FRKPS is used to test the friction clutch on chain hoists. The device consists of a force transducer with chain adapters and a display unit. To perform the test, the force transducer is inserted into the chain, travels upwards with it against the base of the chain hoist and thereby blocks the chain. The force transducer is built as shear beam and is therefore unaffected by parasitic forces and torques. The output signal is carried via cable to the hand-held indicator. To test every kind of chain hoist in the specified load range two chain adapters and three centering sleeves are required. The additional digital hand-held display unit has all the necessary functions to process the output signals of sensors and display the measured value directly. The large dot-matrix display makes handling particularly easy. Delivery In robust aluminum case with: • Hand-held indicator • Force transducer • 3 centering sleeves • 2 chain adapters • Charger • 10 m cable

Applications

• Container weighing directly on the spreader • Determination of the load distribution in the container • For Reachstacker, Straddle Carrier, Rubber Tired Gantry Crane (RTG), Ship to Shore Cranes (STS)

Special features

• Measuring ranges 0 ... 6 t up to 0 … 25 t (others possible) • Relative linearity error < 0.5 % Fnom • Type tested in accordance with OIML R60 (certificate R60/2000-A-NL-18.05) with D175 • Optimal for retrofitting with simple integration into the crane network through CANopen® and CAN SAE J1939 technologies • High overload capacity, long service life of the measuring spring, large shock and vibration resistance

Downloads

FRKPS Data sheets.pdf

pdf
Download

FRKPS Operating instructions.pdf

pdf
Download
