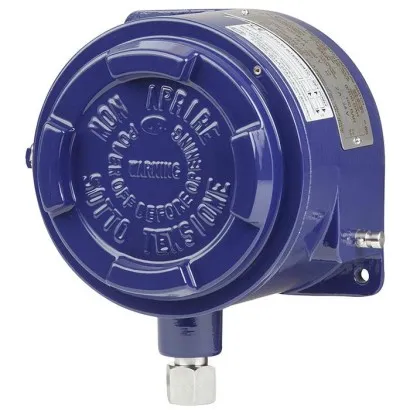

Wika Bourdon Tube Pressure Switch, BA, BAX, Flameproof Enclosure Ex D

Part Number : BA, BAX

Brand :
WIKA

These high-quality pressure switches have been developed especially for safety-critical applications. The high quality of the products and manufacturing in accordance with ISO 9001 ensure reliable monitoring of your plant. In production, the switches are traced by quality assurance software at every step and subsequently are 100 % tested.

View all
Quantity
Description
Downloads
Related products

Description

These high-quality pressure switches have been developed especially for safety-critical applications. The high quality of the products and manufacturing in accordance with ISO 9001 ensure reliable monitoring of your plant. In production, the switches are traced by quality assurance software at every step and subsequently are 100 % tested. All wetted materials are from stainless steel as a standard. In order to ensure as flexible operation as possible, the pressure switches are fitted with micro switches, which enable the switching of an electrical load of up to AC 250 V, 20 A directly. For lower switching power ratings, such as for PLC applications, argon gas-filled micro switches with gold-plated contacts can be selected. Depending on the application, the appropriate variant for the contact version and the electrical connection can be selected; e.g. adjustable dead band instead of fixed dead band is often a feature necessary for control processes. For applications with special requirements on the wetted parts, a version with Monel® is available. By using a Bourdon tube measuring system, the model BA and BAX pressure switch is extremely robust and guarantees optimal operating characteristics and the highest measuring performances, with repeatability lower than 0.5 % of span. For safety applications, the pressure switch is optionally available in a SIL 2-qualified or a SIL 3-qualified version.

Applications

• Pressure monitoring and control of processes • Safety-critical applications in general process instrumentation, especially in the chemical and petrochemical industries, oil and gas industries, power generation incl. nuclear power plants, water/wastewater industries, mining • For gaseous,liquid and aggressive media, also in aggressive ambience

Special features

• No supply voltage needed for the switching of electrical loads • Robust switch enclosure from 316L, IP66, NEMA 4X • Setting ranges from 0 ... 2.5 bar up to 0 ... 1,000 bar, vacuum ranges • Switch point repeatability < 0.5 % • 1 or 2 independent set points, SPDT or DPDT, high switching power up to AC 250 V, 20 A

Downloads

BA, BAX Data sheets.pdf

pdf
Download

BA, BAX Quick order sheets.pdf

pdf
Download

BA, BAX Operating instructions.pdf

pdf
Download

BA, BAX Technical information.pdf

pdf
Download
