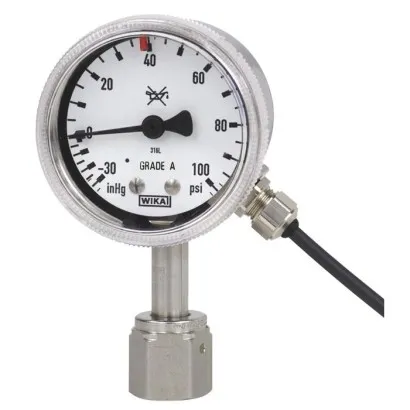

Wika Bourdon Tube Pressure Gauge With Switch Contacts, 230.15-851, For Uhp (Ultra High Purity) Applications, With Reed Contact Model 851
.webp)
.webp)
.webp)
.webp)
Part Number : 230.15-851
Brand :
![WIKA]()
The model 230.15 is a bourdon tube pressure gauge with up to 2 Reed contacts model 851. It was created for high purity applications that require discrete monitoring outputs for globally installed systems and life safety applications.
View all
Description
The model 230.15 is a bourdon tube pressure gauge with up to 2 Reed contacts model 851. It was created for high purity applications that require discrete monitoring outputs for globally installed systems and life safety applications. The switch point can easily be adjusted by removing the window and putting the mark pointer on the desired value on the dial’s circumference. The pressure gauge is helium leak tested and the internals are electropolished to optimally meet purity standards. The instrument complies with SEMATECH and SEMI standards to optimally ensure the quality your applications demand. With such UHP characteristics, the instrument is suitable for the semiconductor and flat panel industries, various gas distribution systems, as well as medical gas applications.
Applications
• For gaseous and liquid, also aggressive media for demanding high purity applications, also in aggressive ambience • Semiconductor and flat panel industry • Medical and pharmaceutical industry, biotechnology industry, production of active ingredients • For high requirements to keep media contamination-freeSpecial features
• Up to 2 Reed contacts, SPDT • Switch points adjustable on site • Wetted parts from stainless steel 316L and face seal process connections • Electropolished internals and case, internal surface finish up to Ra < 0.25 ?m [Ra < 10 ?in] • Scale ranges from -30 inHg ... 45 psi to 0 ... 6,000 psiRelated Products
![]()
