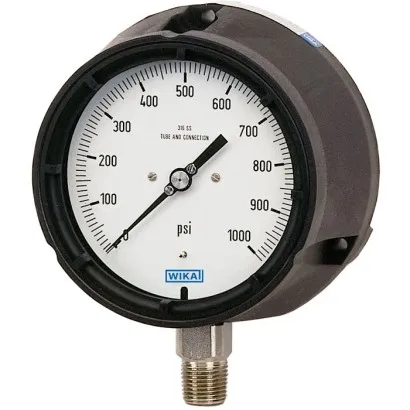

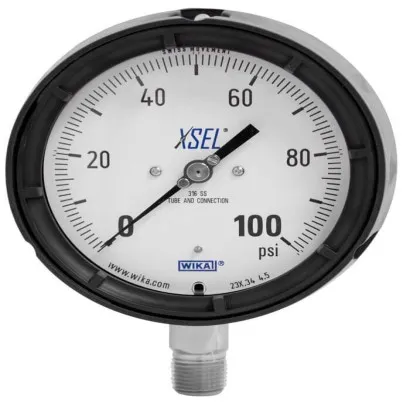

Wika Bourdon Tube Pressure Gauge, Stainless Steel, 232.34, 233.34, Xsel ® Process Pressure Gauge, Ns 4 ½" And 6"

Part Number : 232.34, 233.34

Brand :
WIKA

The use of high-quality materials and the robust design are geared to applications in the chemical and process engineering industries.

View all
Quantity
Description
Downloads
Related products

Description

This high-quality Bourdon tube pressure gauge has been designed especially for the process industry. The use of high-quality materials and the robust design are geared to applications in the chemical and process engineering industries. Scale ranges of 0 ... 10 to 0 ... 30,000 psi [0 ... 0.6 to 0 ... 2,000 bar] ensure the measuring ranges required for a wide variety of applications. WIKA manufactures and qualifies the pressure gauge in accordance with the standard ASME B40.100. As a safety function, this instrument has a solid baffle wall with blow-out back. In the event of a failure, the operator is protected at the front side, as media or components can only be ejected via the back of the case. The glass-fibre reinforced POCAN® case offers the necessary stability for reproducible measurements, even under aggressive ambient conditions. With the model 233.34, the case filling in combination with a screwed-in restrictor enables use in applications with highly dynamic pressure loads and vibrations.

Applications

• For applications with highly dynamic pressure loads and vibrations • For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments • Process industry: Plant construction, chemical industry, petrochemical industry, power plants, mining, on-/offshore and environmental technology • Machine building and general plant construction

Special features

• Excellent load-cycle stability and shock resistance • Safety version with solid baffle wall designed in compliance with the requirements and test conditions of ASME B 40.100 • With case filling (model 233.34) for applications with high dynamic pressure loads and vibrations • Scale ranges from 0 ... 10 to 0 ... 30,000 psi [0 ... 0.6 to 0 ... 2,000 bar]

Downloads

232.34, 233.34 Data sheets.pdf

pdf
Download

232.34, 233.34 Operating instructions.pdf

pdf
Download

232.34, 233.34 Technical information.pdf

pdf
Download
