Wika Bourdon Tube Pressure Gauge Model 232.50.160, 0...160 PSI, 160 mm (6") Dial, 1/2" NPT Connection, Lower Mount, Stainless Steel Body & Wetted Parts, Class 1.0, 84287896
Part Number : 84287896
Brand :
![WIKA]()
Wika Bourdon Tube Pressure Gauge Model 232.50.160, 0...160 PSI, 160 mm (6") Dial, 1/2" NPT Connection, Lower Mount, Stainless Steel Body & Wetted Parts, Class 1.0
View all
KWD 40.000
Description

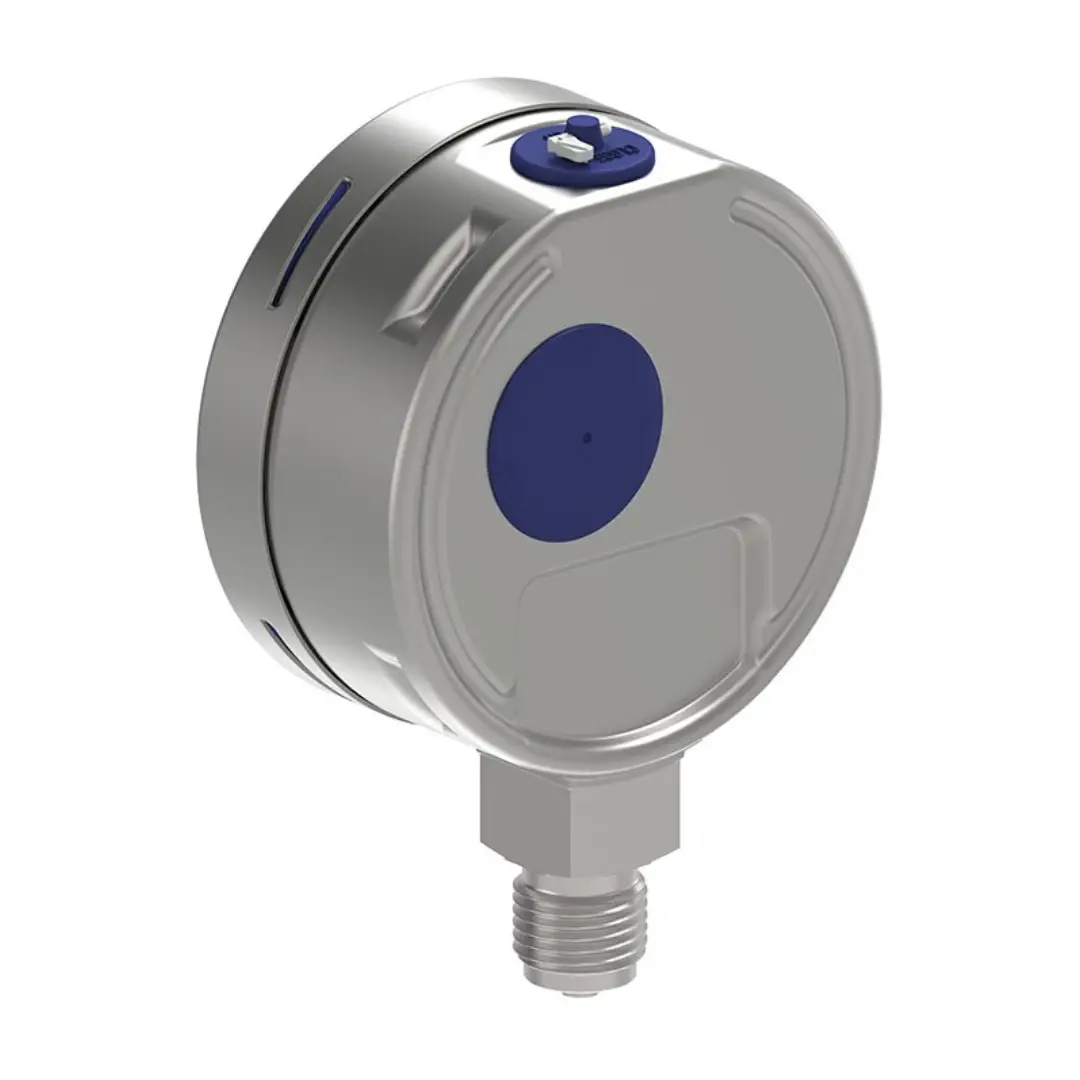

Wika Model 232.50.160 Bourdon tube pressure gauge with 0...160 PSI range, 160 mm (6") dial and 1/2" NPT lower mount process connection. The all-stainless-steel case and 316L Bourdon tube measuring system make it suitable for corrosive media and demanding industrial environments. The gauge offers accuracy class 1.0 according to EN 837-1 / ASME B40.100, laminated safety glass window, IP65 ingress protection, and is designed for ambient temperatures from -40…+60 °C and media temperatures up to +200 °C.
Features
• Full stainless steel case and wetted parts for aggressive media • 160 mm (6") dial with dual psi/bar scale (red inner scale) • Measuring range 0...160 PSI for process and utility lines • 1/2" NPT lower mount process connection • Accuracy class 1.0 (EN 837-1 / ASME B40.100) • Laminated safety glass window with high impact resistance • IP65 ingress protection • Ambient temperature range -40…+60 °C, medium temperature up to +200 °CApplications
• Chemical and petrochemical process lines • Oil and gas skids and utility stations • Water and wastewater treatment plants • Power generation and boiler auxiliaries • General industrial machinery and OEM equipment • Compressed air, gas and hydraulic circuitsBenefits
• Long service life in corrosive and harsh environments • Reliable measurement thanks to robust Bourdon tube system • Extra-large 160 mm (6") dial improves readability from a distance • Standardised 1/2" NPT lower mount simplifies replacement and stocking • Clear dual scale reduces operator errorSpecifications
