Wika Bourdon Tube Pressure Gauge Model 213.53.100, 0...4000 PSI With Liquid Filled Case, 100 mm (4") Dial, 1/2" NPT Connection, Lower back mount, Stainless Steel Case, Class 1.0 Accuracy, IP65, 84254741
Part Number : 84254741
Brand :
![WIKA]()
WIKA model 213.53.100 liquid filled bourdon tube pressure gauge with 0...4000 PSI range, dual psi/bar scale, 100 mm (4") stainless steel case, 1/2" NPT lower back mount and IP65 ingress protection for harsh industrial applications.
View all
KWD 18.000
Description

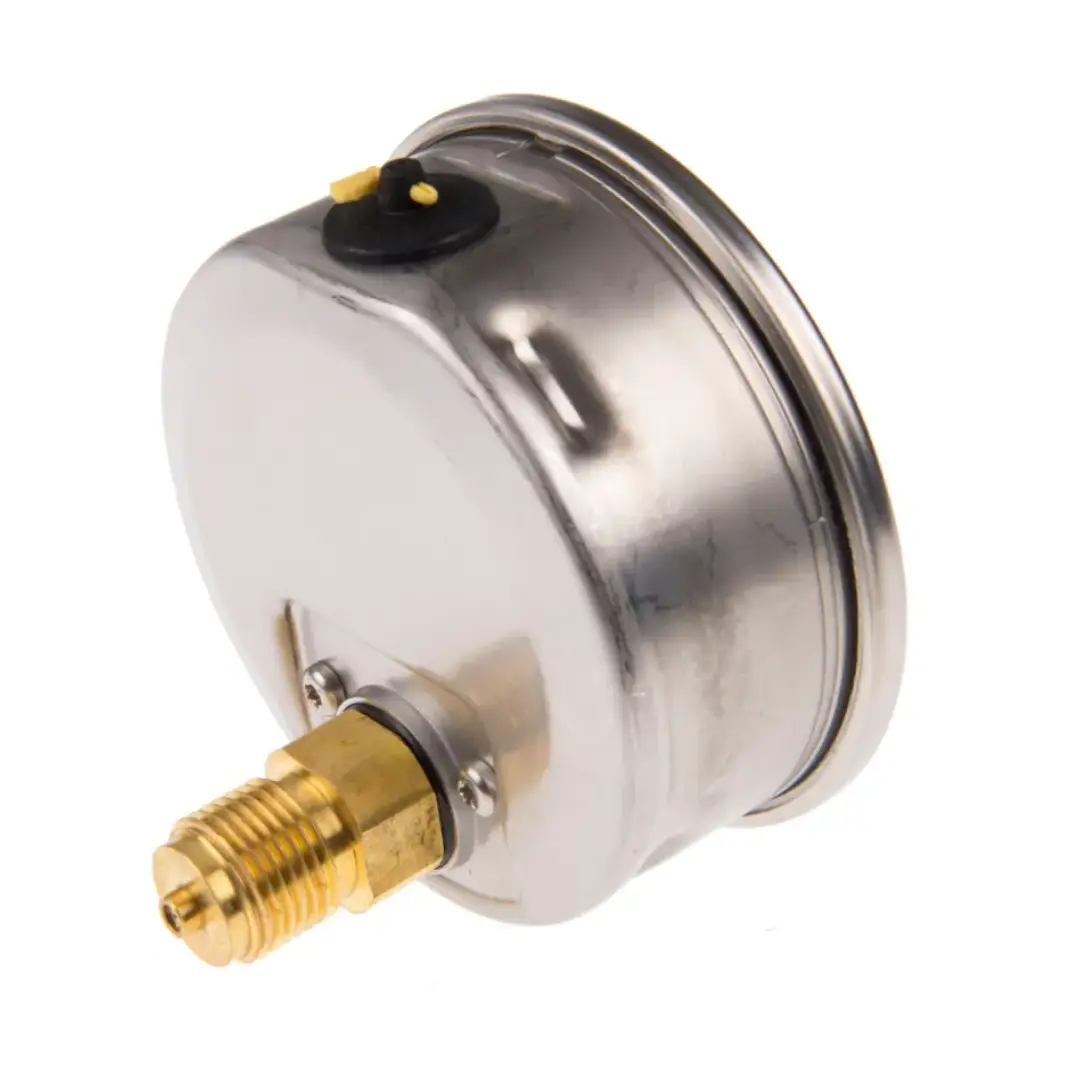

The WIKA model 213.53.100 bourdon tube pressure gauge features a stainless steel case with liquid filling and a 0...4000 PSI primary scale with inner red bar secondary scale on a 100 mm (4") dial. The glycerine-filled case efficiently dampens pulsation and vibration, protecting the copper alloy bourdon tube measuring system and extending service life. With a 1/2" NPT lower back mount process connection, accuracy class 1.0 to EN 837-1 and IP65 ingress protection, this gauge is ideal for hydraulic systems, compressors and general industrial machinery where reliable local pressure indication is required.
Key Features
• Bourdon tube pressure gauge with stainless steel case and liquid filling • Pressure range 0...4000 PSI with dual psi/bar scale and inner red bar markings for clear reading • 100 mm (4") dial and 1/2" NPT lower back mount process connection for easy panel mounting • Copper alloy bourdon tube and movement for reliable pressure indication • Liquid-filled case efficiently dampens pulsation and vibration and extends gauge service life • Accuracy class 1.0 to EN 837-1 and IP65 ingress protection • Suitable for gaseous and liquid media that do not attack copper alloy partsApplications
• Hydraulic systems and power packs • Compressors and general industrial machinery • Process lines and test benches • Measuring points with high dynamic pressure loads and vibration (with liquid filling) • OEM equipment and plant construction requiring durable local pressure indicationSpecifications
