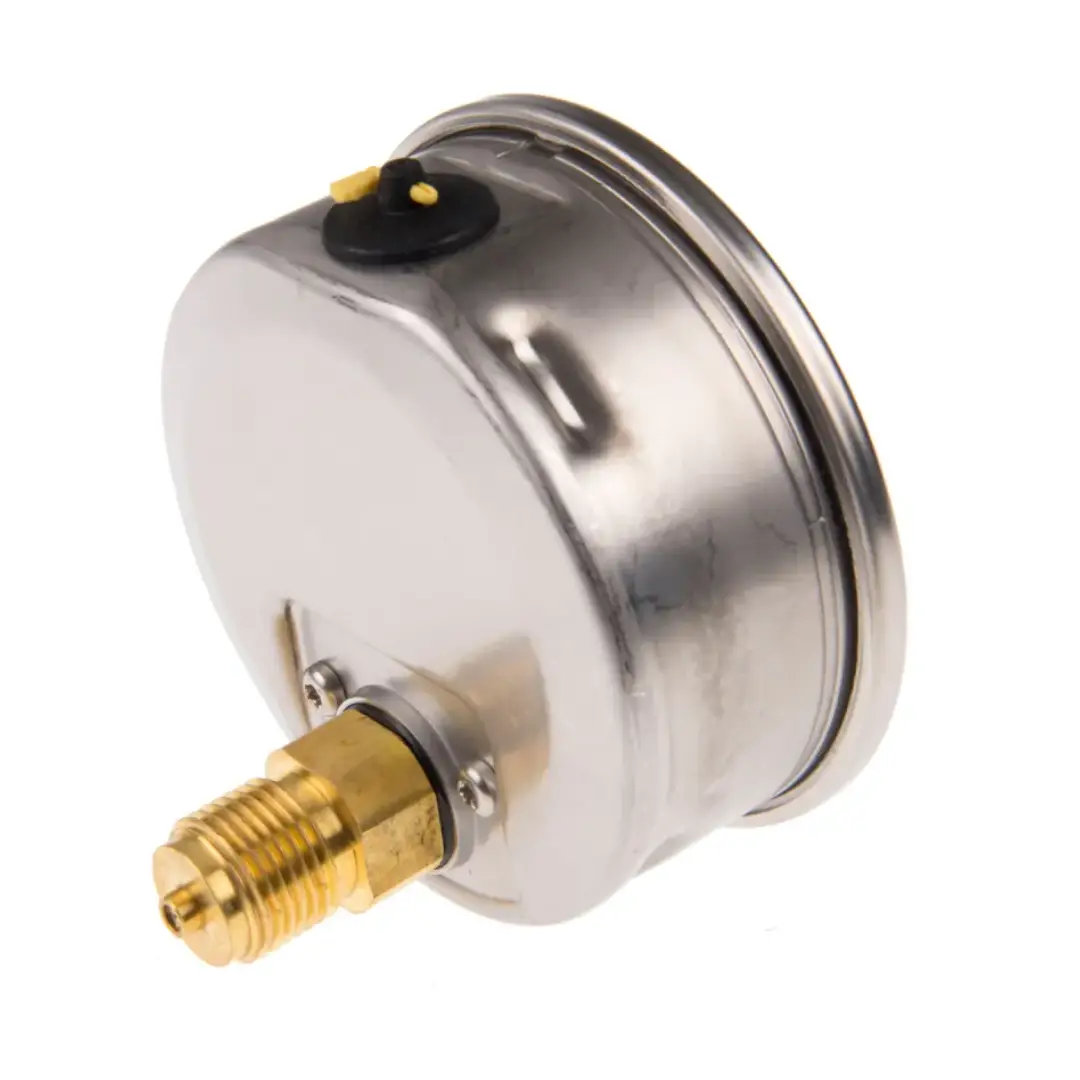

Wika Bourdon Tube Pressure Gauge Model 213.53.100, 0...400 PSI With Glycerine Filling, 100 mm (4") Dial, 1/2" NPT Lower Back Mount, Stainless Steel Case, Class 1.0 Accuracy, IP65, 84153967

Part Number : 84153967

Brand :
WIKA

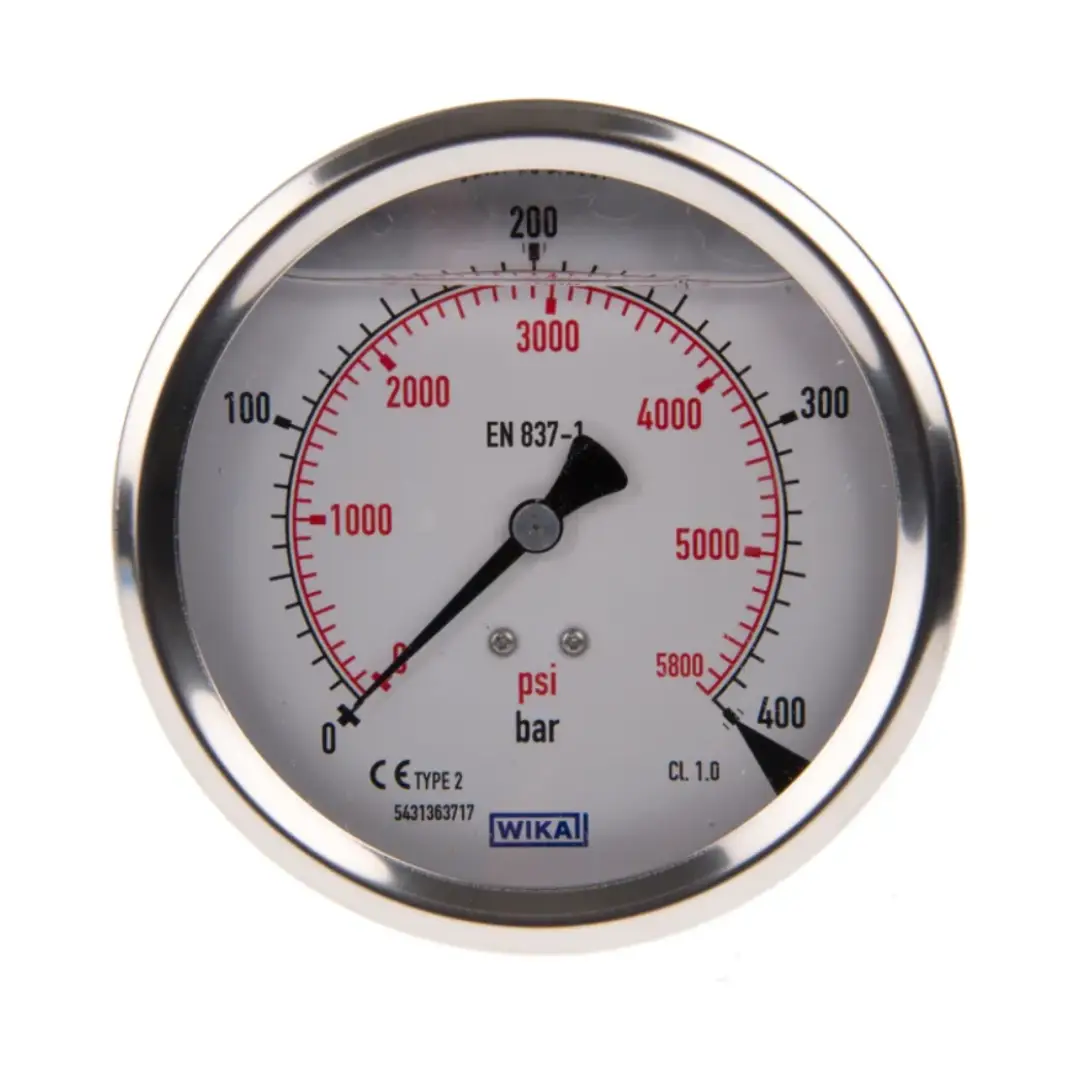

Wika 213.53.100 liquid-filled bourdon tube pressure gauge with 100 mm (4") Dial, 1/2" NPT Lower Back Mount and Stainless Steel Case. Measuring range 0...400 PSI with dual PSI/bar scale for industrial pressure monitoring.

View all

KWD 18.000

Quantity
Description
Specifications
Downloads
Related products

Description

This Wika 213.53.100 stainless steel bourdon tube pressure gauge features a liquid-filled case to dampen vibration and improve pointer stability. It offers a 0...400 PSI measuring range with secondary bar scale on a large, easy-to-read 100 mm (4") Dial. The robust crimp ring stainless steel case with 1/2" NPT Lower Back Mount and accuracy class 1.0 is suitable for monitoring non-aggressive gases and liquids in pumps, compressors, hydraulic systems and general plant equipment. The glycerine filling, IP65 protection and lower back mount make this gauge ideal for demanding industrial environments.

Features

• Stainless steel bourdon tube pressure gauge with liquid-filled case for vibration damping • 100 mm (4") dial with clear dual PSI/bar scale • Robust crimp ring stainless steel case (version 53) • 1/2" NPT lower back mount process connection • Accuracy class 1.0 for reliable indication • Glycerine filling improves pointer stability under pulsating loads • IP65 protection for demanding industrial environments

Applications

• Machine building and general plant construction • Pumps, compressors and hydraulic systems with vibration or pulsation • Industrial process lines using non-aggressive gases and liquids • Compressed air, water supply and utility services • Applications requiring a robust stainless steel liquid-filled gauge with lower back mount connection

Downloads

Wika Datasheet 84153967.pdf

pdf
Download

Wika 213.53 Model Pressure Gauge Datasheet.pdf

pdf
Download

Specifications

Model
Choose a model.
213.53.100
Pressure Range
0...400 psi
Nominal size
100 mm (4")
Process Connection
1/2" NPT, lower back mount
Case Material
stainless steel 1.4301
Case design
Crimp ring case (version 53)
Case filling
Glycerine, liquid filled case
Accuracy class
class 1.0
Pressure Gauge Standard
International (standard Europe)
Second scale
2nd scale bar (bar, red RAL 3020)
