Wika Bourdon Tube Pressure Gauge Model 213.53.100, 0...200 PSI With Glycerine Filling, 100 mm (4") Dial, 1/2" NPT Lower Back Mount, Stainless steel 1.4301 Case, Class 1.0 Accuracy, IP65, 39999513
Part Number : 39999513
Brand :
![WIKA]()
WIKA model 213.53.100 liquid filled bourdon tube pressure gauge with 0...200 PSI range, 100 mm (4") dial, 1/2" NPT lower back mount and IP65 ingress protection for demanding industrial use.
View all
KWD 18.000
Description

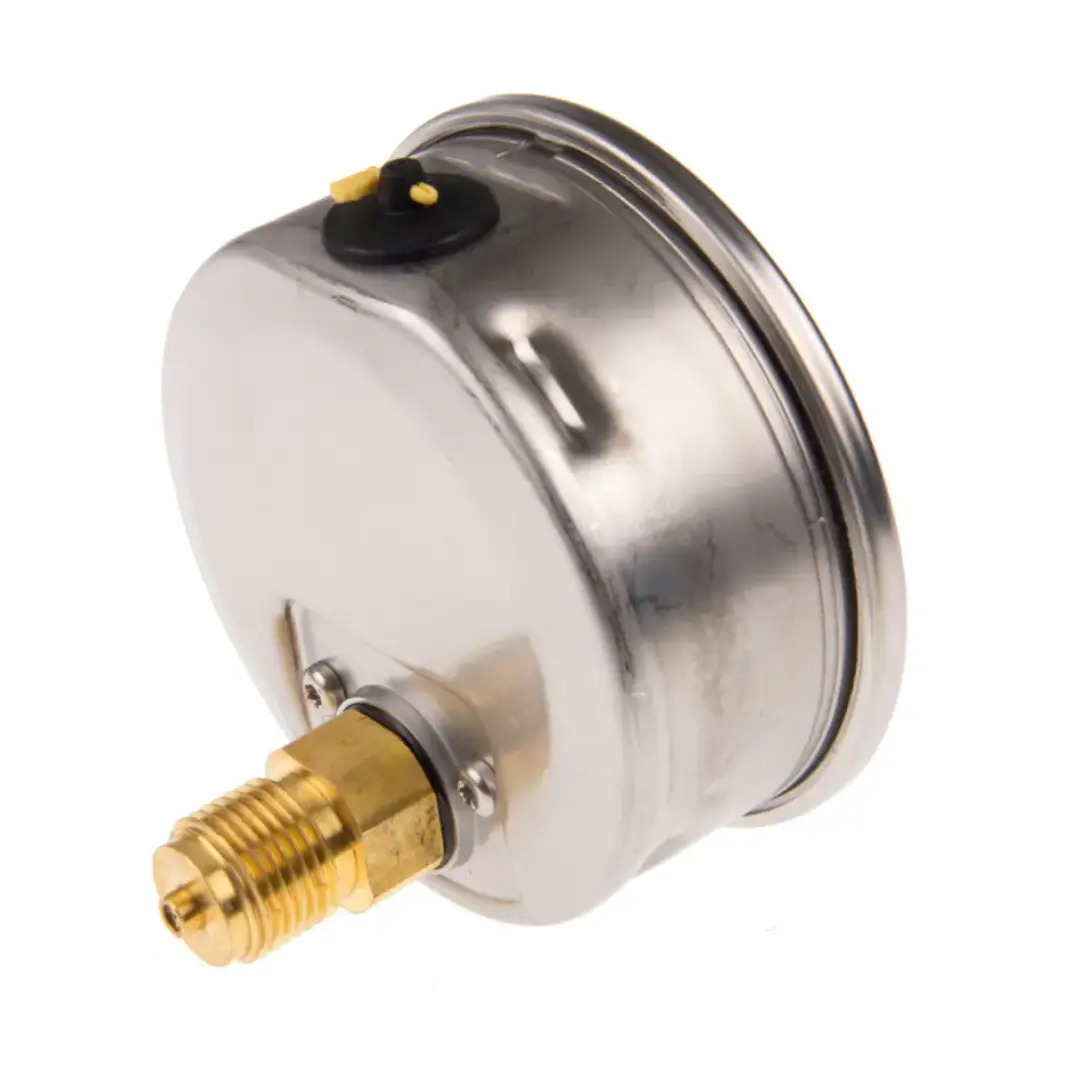

The WIKA model 213.53.100 bourdon tube pressure gauge provides reliable indication of system pressure over a range of 0...200 PSI on a dual psi/bar scale. A 100 mm (4") case with 1/2" NPT lower back mount process connection and a copper alloy measuring system ensures robust performance in industrial and OEM applications. The stainless steel case is factory filled with glycerine to damp pulsation and vibration in the system.
Key Features
• Bourdon tube pressure gauge with stainless steel 1.4301 case with glycerine liquid filling for vibration dampening • Pressure range 0...200 PSI with dual psi/bar scale and inner red bar markings for clear reading • 100 mm (4") dial and 1/2" NPT lower back mount process connection for easy installation • Copper alloy bourdon tube and movement for reliable pressure indication • Factory-filled case with glycerine to damp pulsation and vibration • Accuracy class 1.0 to EN 837-1 and IP65 ingress protection • Suitable for gaseous and liquid media that do not attack copper alloy partsApplications
• Hydraulic systems and power packs • Compressors and general industrial machinery • Process lines and test benches where a liquid filled gauge is preferred • Measuring points with moderate dynamic loads (enhanced damping of severe vibration with liquid filling) • OEM equipment and plant construction requiring durable local pressure indicationSpecifications
