Wika Bourdon Tube Pressure Gauge Model 213.53.100, 0...100 PSI With Glycerine Filling, 100 mm Dial, 1/2" NPT Lower Back Mount, Stainless Steel Case, Class 1.0 Accuracy, IP65, 84254737
Part Number : 84254737
Brand :
![WIKA]()
WIKA model 213.53.100 liquid filled bourdon tube pressure gauge with 0...100 PSI range, 100 mm dial, 1/2" NPT lower back mount and IP65 ingress protection for demanding industrial use in areas with vibration.
View all
KWD 18.000
Description

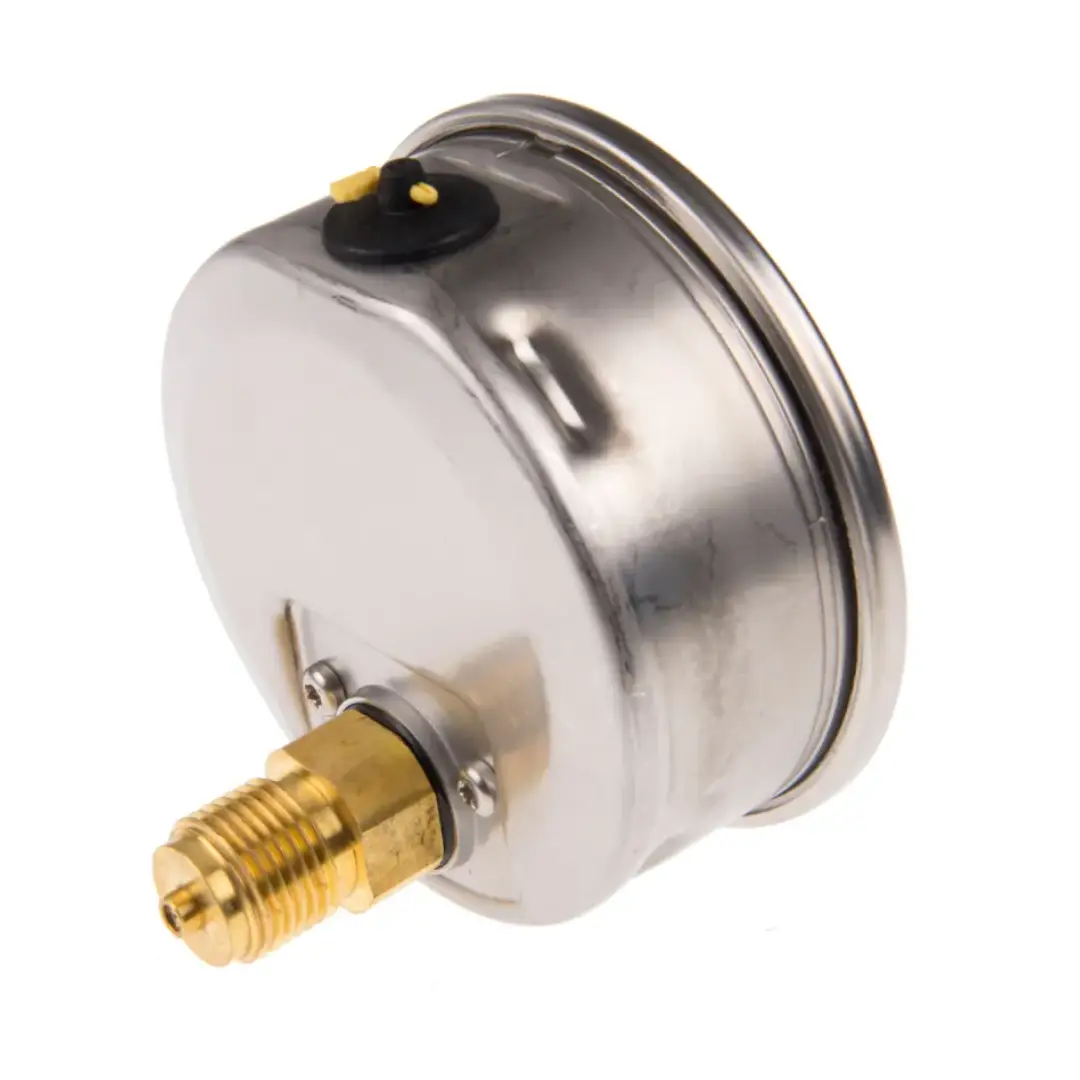

The WIKA model 213.53.100 bourdon tube pressure gauge features a glycerine liquid filled stainless steel case for improved damping of pulsation and vibration, with a measuring range of 0...100 PSI on a dual psi/bar scale. The 100 mm (4") dial and 1/2" NPT lower back mount process connection ensure clear readability and easy installation in industrial piping, hydraulic power packs and pump systems. A copper alloy bourdon tube and movement, accuracy class 1.0 and IP65 ingress protection make it suitable for demanding industrial service.
Key Features
• Bourdon tube pressure gauge with stainless steel case with glycerine liquid filling for vibration dampening • Pressure range 0...100 PSI with dual psi/bar scale and inner red bar markings for clear reading • 100 mm (4") dial and 1/2" NPT lower back mount process connection for easy installation • Copper alloy bourdon tube and movement for reliable pressure indication • Factory-filled case with glycerine to damp pulsation and vibration • Accuracy class 1.0 to EN 837-1 and IP65 ingress protection • Suitable for gaseous and liquid media that do not attack copper alloy partsApplications
• Hydraulic systems and power packs • Compressors and general industrial machinery • Process lines and test benches where a liquid filled gauge is preferred • Measuring points with moderate dynamic loads (enhanced damping of severe vibration with liquid filling) • OEM equipment and plant construction requiring durable local pressure indicationSpecifications
