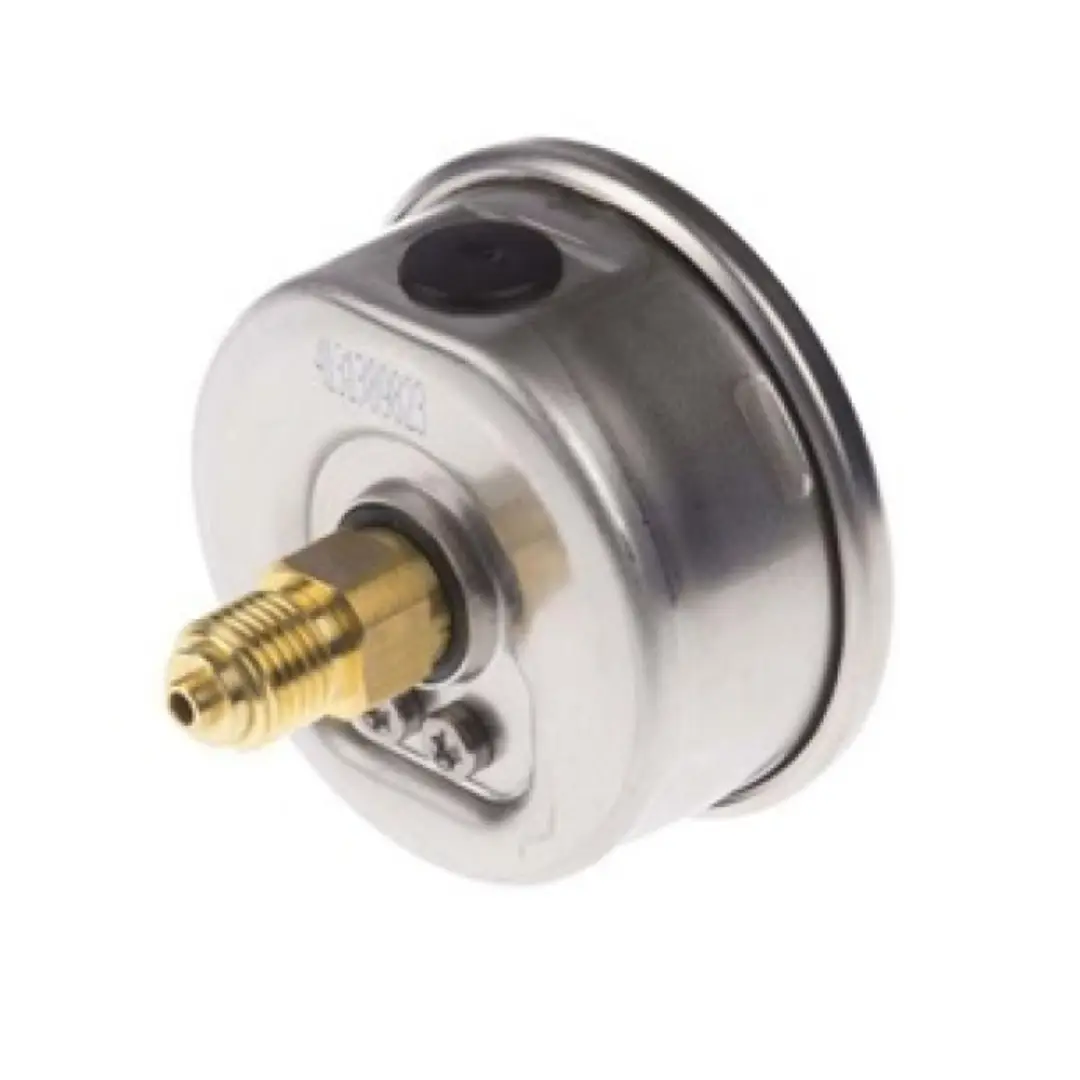

Wika Bourdon Tube Pressure Gauge Model 213.53.063, 0...5000 PSI With Liquid Filled Case, 63 mm (2.5") Dial, 1/4" NPT Connection, Center Back Mount, Stainless Steel Case, Class 1.6 Accuracy, IP65, 84287335
Part Number : 84287335
Brand :
![WIKA]()
Wika 213.53.063 liquid filled stainless steel Bourdon tube pressure gauge with 0...5000 psi range, 63 mm (2.5") dial, 1/4" NPT center back mount, class 1.6 accuracy and IP65 protection.
View all
KWD 9.500
Description
This Wika Bourdon tube pressure gauge, model 213.53.063, is a compact liquid filled industrial gauge designed for reliable measurement of system pressure. It provides a 0...5000 psi primary scale with a secondary bar scale on a 63 mm (2.5") dial, allowing quick reading in both imperial and metric units. The measuring system consists of a stainless steel Bourdon tube and movement housed in a robust stainless steel case, offering very good resistance to vibration, corrosion and harsh environments, while the glycerine filled case damps pointer flutter caused by pulsating pressures and mechanical vibration to improve readability and extend service life. With a 1/4" NPT center back mount process connection, accuracy class 1.6 to EN 837-1 and an IP65 housing to protect the mechanism from dust and water spray, this 63 mm liquid filled stainless steel gauge is suitable for pumps, compressors, hydraulic and pneumatic systems, OEM machinery, panels and general industrial equipment.
Key features
• Liquid filled stainless steel case for vibration damping • 63 mm (2.5") Bourdon tube gauge with 0...5000 psi measuring range • 1/4" NPT center back mount process connection for easy panel mounting • Class 1.6 accuracy to EN 837-1 for reliable indication • IP65 ingress protection for harsh industrial environmentsApplications
• General industrial pressure measurement on machines and skids • Pumps, compressors and hydraulic or pneumatic systems with pulsating pressures • OEM equipment and panels requiring compact 63 mm glycerine filled gauges • Process lines where stainless steel wetted parts are preferredSpecifications
